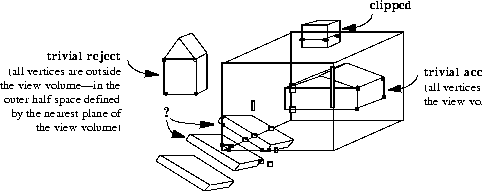

Clipping Against View Volume

• The objects in the normalized world are clipped against the bounds of the view volume, a polygon at a time.

• Polygons are clipped an edge at a time.

• Intersection calculations are trivial because of the normalized planes of the canonical view volume.

• New vertices are created where objects are clipped.
