Gouraud Shading

• Gouraud (intensity interpolation) shading

  • Use for polygon approximations to curved surfaces (e.g., the milling machine's head)

  • Linear interpolation of intensity along scan lines

  • Eliminates intensity discontinuities at polygon edges

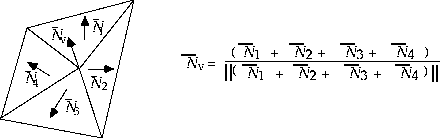

  • Step one: calculate "vertex normals" as average of surrounding polygons normals. Only an approximation



  • Step two: calculate illumination at each vertex

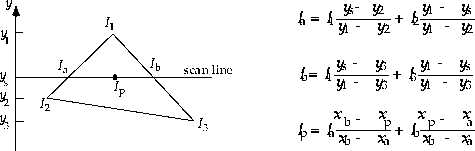

  • Step three: interpolate illumination along polygon edges

  • Step four: interpolate illumination along spans

• Works well if polygons are small
