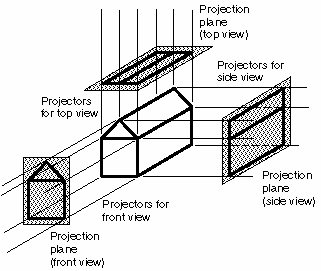

Multiview Orthographic

• Used for:

  • engineering drawings of machines, machine parts

  • working architectural drawings

• Pros:

  • accurate measurement possible

  • all views are at same scale

• Cons:

  • does not provide "realistic" view or sense of 3D form

• Usually need multiple views to get feeling for object.
