Overview of Computer Graphics
Composition of a Geometric Model

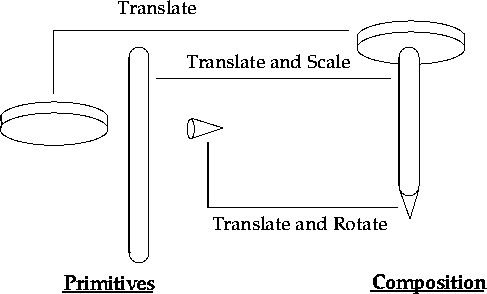

The primitives created in the decomposition process must be assembled to create the final object. This is done here with affine transformations (as in the example above).
Other composition operators will be discussed later (e.g., CSG Boolean operators).
