In this lab, you will explore different ways microcontrollers can interact with other entities, such as other microcontrollers and the internet. You will use the MKR1000’s built-in serial capabilities, and then write your own software UART to build understanding of how serial communication works. You will also see how to use your MKR1000s’ built-in WiFi modules to communicate with a webpage. By the end of this lab, you should be comfortable with using your Arduinos to communicate with other devices.

Lab 7 Rubric

Resources

Starter code

Materials

Included in your kits:

2x Arduino MKR1000 and USB cable
5 resistors (3 x 1kΩ 2 x any size, both same size)
1 x RGB LED or 1 each of red, blue, and green LED
Jumpers/wires

Provided:

None necessary

Steps

If you haven’t registered your Arduino to the Brown-Guest network, installed the WiFi101 library, or updated firmware as described in the prelab, do so now. Only one Arduino from each group needs to be registered.
Your Arduino has built-in serial communication that you can use to send data between two Arduinos. Explore this here:

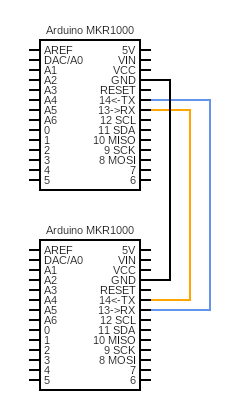

1. Wire up the following circuit. Notice that the TX pin of one Arduino goes into the RX pin of the other Arduino, and vice versa. Also, be sure to connect the GND pins of both Arduinos! For this circuit, you do not have to put both Arduinos on the same breadboard, or any breadboard at all. If you want, you can wire up this circuit by using 3 stranded jumper wires and putting them directly into the pin headers of the Arduinos.
2. You can connect both Arduinos to one computer, or use two different computers. If you are using the same computer, you can switch between Arduinos by changing the port under Tools -> Port. You will have to do this even if you have multiple IDE windows open. Notice also that the Serial monitor changes which Arduino it is receiving data from based on which port is selected.
3. The Serial documentation shows that the TX and RX pins of the MKR1000 are associated with Serial1. Hence, you can initialize the communication between Arduinos just like you initialized communication with the Serial monitor:
```
void setup() {
  Serial.begin(9600);  // Initialize serial monitor
  while (!Serial);     // Wait for serial monitor to start (need this for USB serial)
  Serial1.begin(9600); // Initialize TX/RX communication (do not need to wait)
}
```
4. Make a new sketch called sender.ino that, in the loop() function, uses Serial.write to send a string of your choosing, such as “Hello World!”, every 2 seconds, via Serial1. Upload it to one of your Arduinos.
5. Make a new sketch called receiver.ino that, in the loop() function, reads bytes from Serial1 into a buffer and then prints that buffer to the Serial monitor. Refer to the Serial.read documentation to see how to do this. You can cast bytes to chars directly, i.e. Serial.println((char) b) if b is of type byte. It is okay to print each character on its own line. Upload it to your other Arduino and open the serial monitor. If you see the Serial monitor printing your string from 2d above, get checked off by a TA!
Now connect the sender to the internet!
1. Download, extract, and open the starter code as a new Arduino project. Run the code on the sender Arduino and observe the output on the Serial monitor (you do not have to be running the receiver Arduino for this step). What do you see?
2. Study the code in lab7_wifi.ino. Notice that the code fetches and reads in the content from this page, which is set to change to a random value from {RED, GREEN, BLUE} every 0.5-2.5 seconds. As given to you, the code prints the entirety of what it sees when requesting this file from the server, including header information. Change the code so that only RED, GREEN, or BLUE gets printed to the Serial monitor whenever the file is fetched. You can ignore any server errors that are returned.
3. Modify your sender code such that it sends one of ‘R’, ‘G’, or ‘B’ (depending on what it reads from the file on the website) at approximately 500ms intervals to the receiver via Serial1 (remember to add Serial1.begin(9600) in setup). The end result is that the receiver should not be connected to the internet, but should be displaying the color shown on the website in (more or less) real-time because it is communicating with the sender (which is connected to the internet). Observe that the receiver is receiving these values (you should not have to change your receiver code). Get checked off by a TA.
Now write your own Serial transmitter and receiver! As stated in the prelab, you will implement UART in software.
1. Remove the Serial1.begin(9600) line in lab7.ino. Also uncomment the lines after the comment reading Uncomment for LAB STEP 4a. Observe how uart_receive is an interrupt service routine that triggers when in_pin is FALLING (goes from HIGH to LOW). Check with your partner that you agree on why this is.

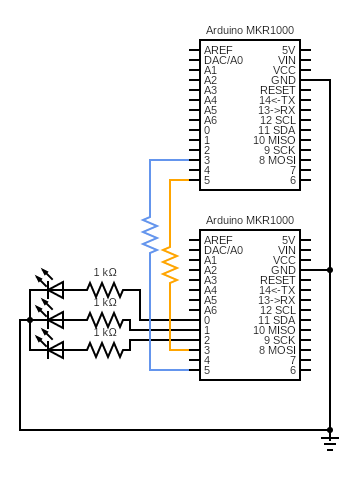

2. Wire up the following circuit. For the LEDs, you may use one RGB LED or a red, a green, and a blue LED. The resistors between pins 3 and 5 of both Arduinos can be any resistance (technically they are not necessary if the pins are configured correctly, but we add them to limit the current just in case of a mistake in software).
3. You will upload the same code to both Arduinos, except for the line under LAB STEP 4c/4g, which will configure one as the sender and one as the receiver. This means that both Arduinos are capable of sending and receiving data, even though, in this lab, the sender will be using the send function only and the receiver will be using the receiver function only. The writeup asks you more about this design.
4. The sender and receiver have the following roles in this step:
  Sender: reads RED, GREEN, or BLUE from the website at approximately 500ms intervals and stores data in a buffer. Reads from the buffer and sends ‘r’, ‘g’, or ‘b’ to the receiver via the UART.
  Receiver: reads ‘r’, ‘g’, or ‘b’ from the UART into a buffer. Reads from the buffer and lights up the corresponding LED.
  Remember that characters are stored in 8 bits, so you can cast a character to a byte easily (e.g. (byte) 'r').
5. Code up the necessary code for the sender. We have commented LAB STEP 4e in some places of the code to guide you. In the function uart_send (lab7_uart.ino file), you should fill in the blanks according to the answers from your prelab. Notice how the clock period of the UART is enforced using software.
  You should make functions that read from/write to the buffer s_buf atomic, by disabling interrupts whenever you write to/read from the buffer. The Arduino functions interrupts() and noInterrupts() will help you accomplish this. Also remember to check that s_buf will not fill up before adding to it!
6. Code up the receiver. We have commented LAB STEP 4f in some places of the code to guide you. When you check the parity bit for messages you receive, you should discard messages for which the computed parity does not match. You should also discard messages that are not ‘r’, ‘g’, or ‘b’. Similarly to the step 4e, you should fill in the blanks to uart_receive according to the prelab, make functions that read from/write to the buffer r_buf atomic, and remember to check that r_buf will not fill up before adding to it!
7. Upload the code to both Arduinos, remembering to toggle the SENDER flag (under comment LAB STEP 4c/4g). Run and debug the code. When debugging, it may be helpful for the receiver to write what it is receiving (and the messages it may be discarding) to the Serial monitor. Once you are confident it works, get it checked off by a TA. Your TA will have a reference implementation that reads from the same website, so you should be seeing your LEDs and the TA’s LEDs display the same light sequence.
Turn in the lab7_uart.ino code on the Lab 7: Code Gradescope assignment
