Component glossary

Photo Component Name Symbol (if applicable)

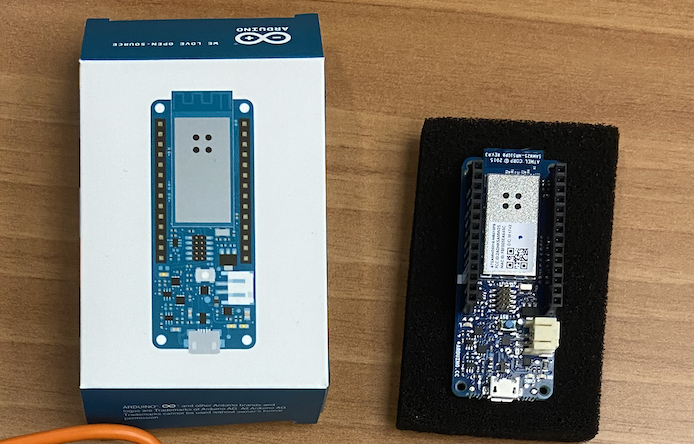

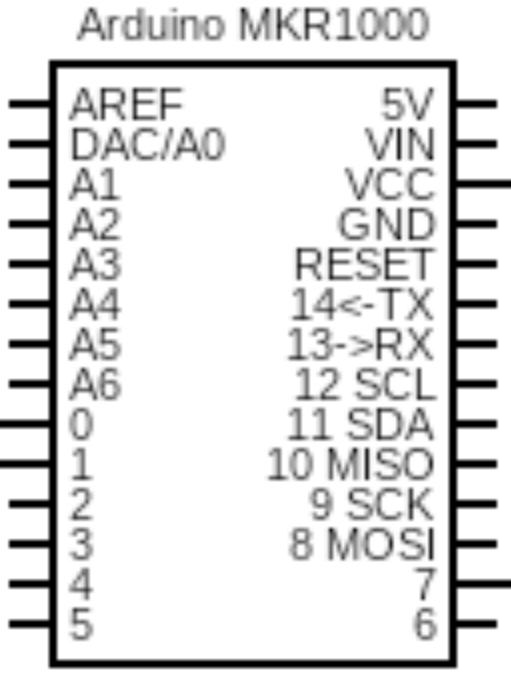

arduino.png MKR1000 Board arduino_schematic.png

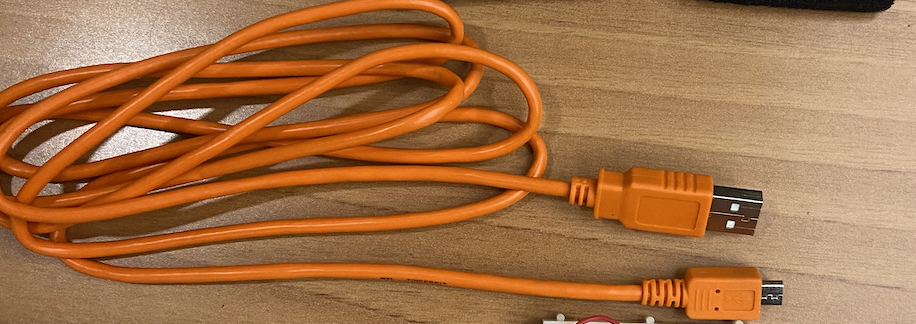

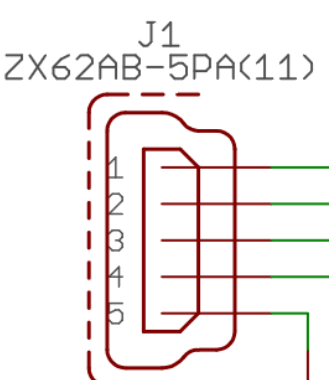

USB.png USB Cable usb_schematic.png

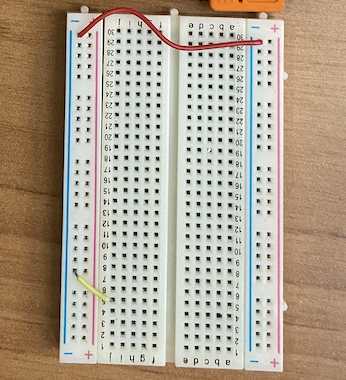

breadboard.png Breadboard

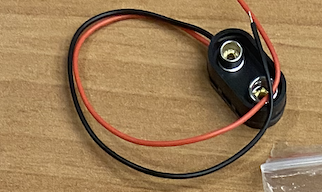

snap.png 9V Battery Snap
wires.png Solid Core Jumper Wires

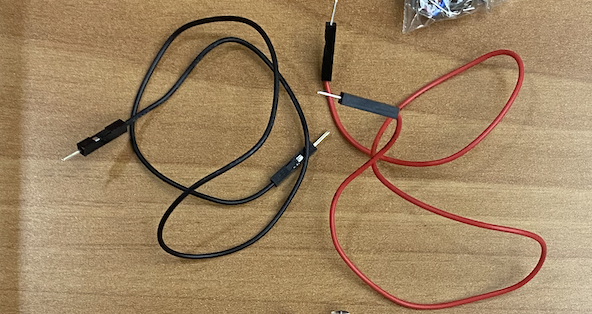

stranded.png Stranded Jumper Wire

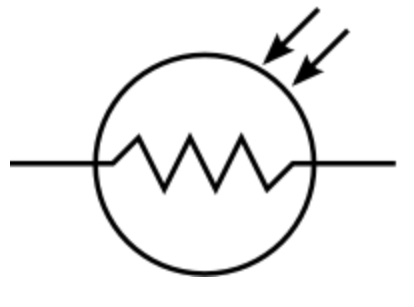

photoresistor.png Photoresistor photoresistor_schematic.png

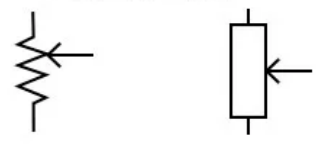

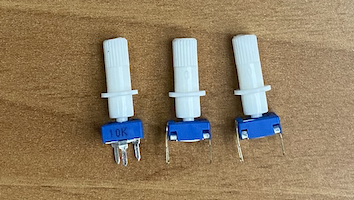

potent.png Potentiometer 10 KiloOhm potentiometer_schematic.png
buttons.png Pushbuttons button_schematic.png
temp.png Temperature Sensor
tilt.png Tilt Sensor

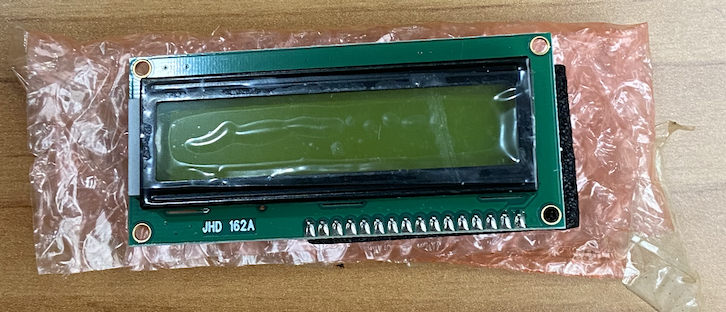

screen.png LCD Screen Integrated circuit schematic
bright.png LED (Bright White) led_schematic.png

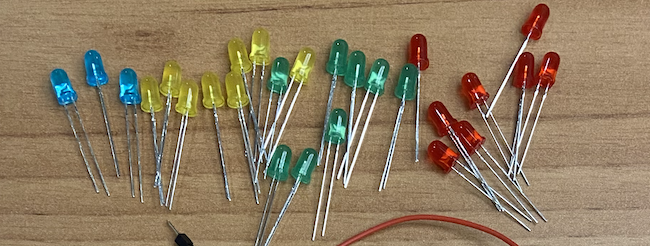

leds.png LEDs (Assorted) led_schematic.png

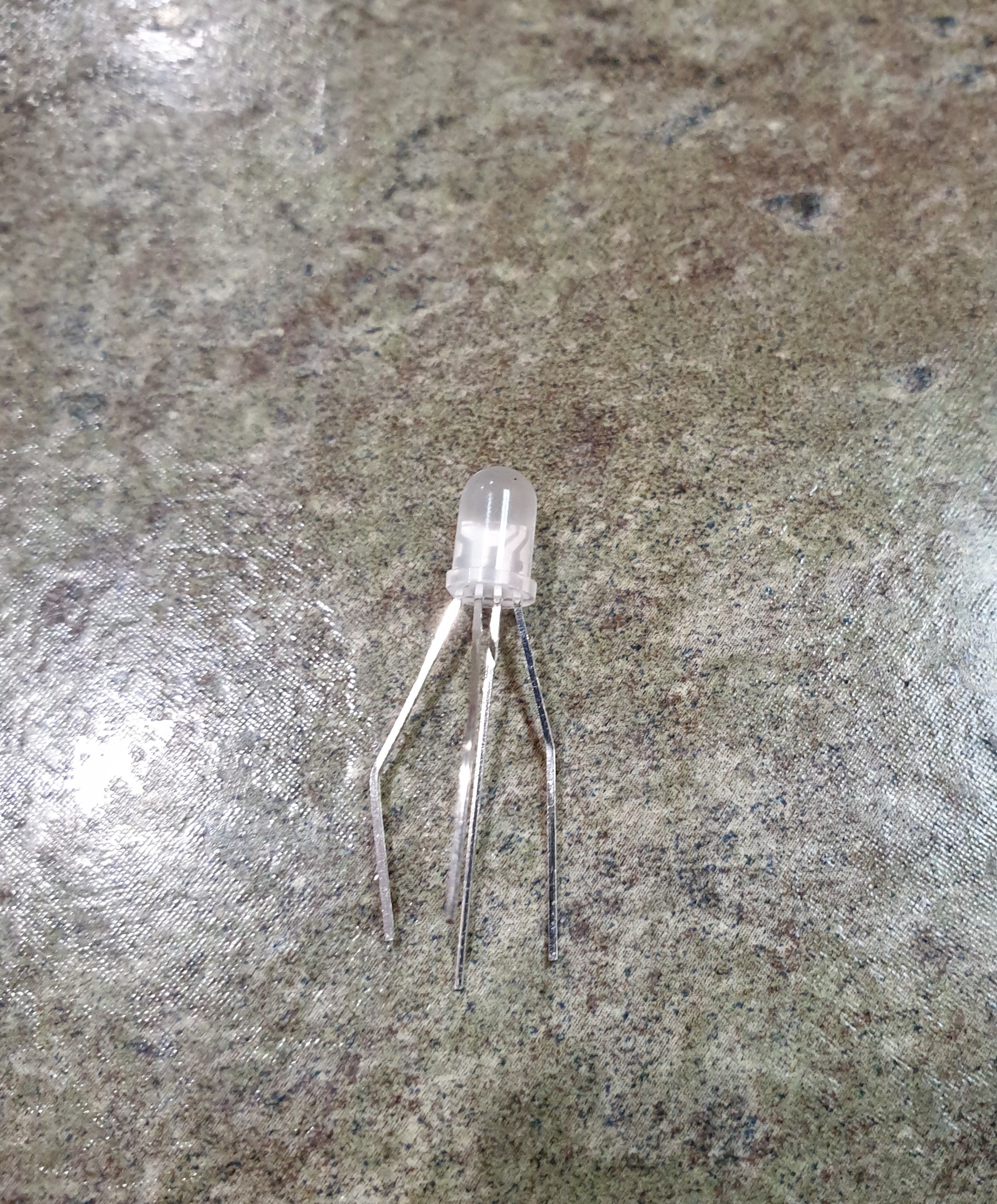

rgb_led.png RGB LED (Common Cathode) rgb_led_schematic.png

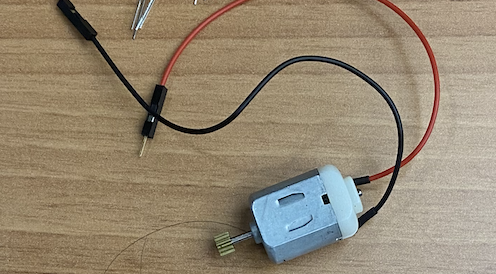

dc.png Small DC Motor 6/9V dc_motor_schematic.png

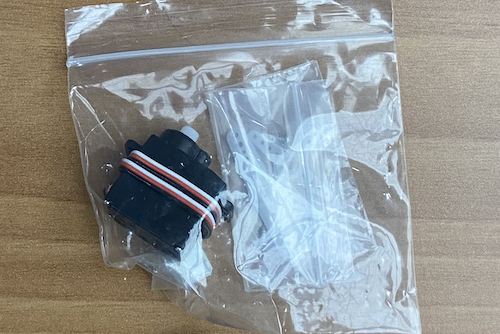

servo.png Small Servo Motor
piezo.png Piezo Capsule piezo_schematic.png
hbridge.png H-Bridge Motor Driver Integrated circuit schematic
opto.png Optocoupler optocoupler_schematic.png

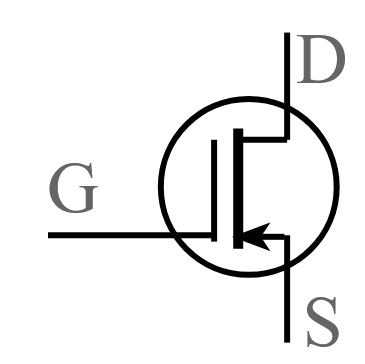

mosfet.png MOSFET Transistors mosfet_schematic.png
capacitor.png Capacitors 100uF capacitor_schematic.png

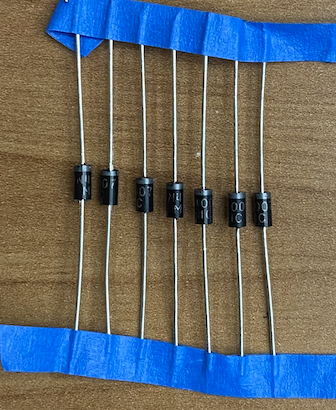

diode.png Diodes diode_schematic.png

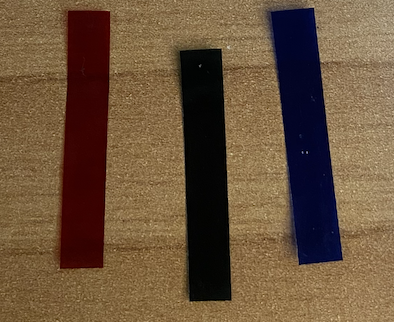

gels.png “Transparent Gels (RGB)”

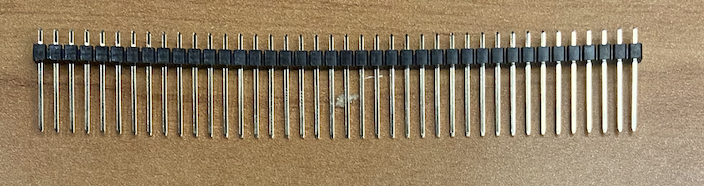

male.png Male Pins Strip (4x1)

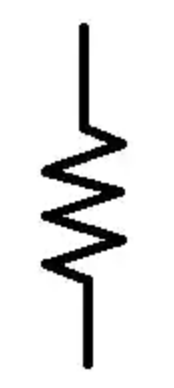

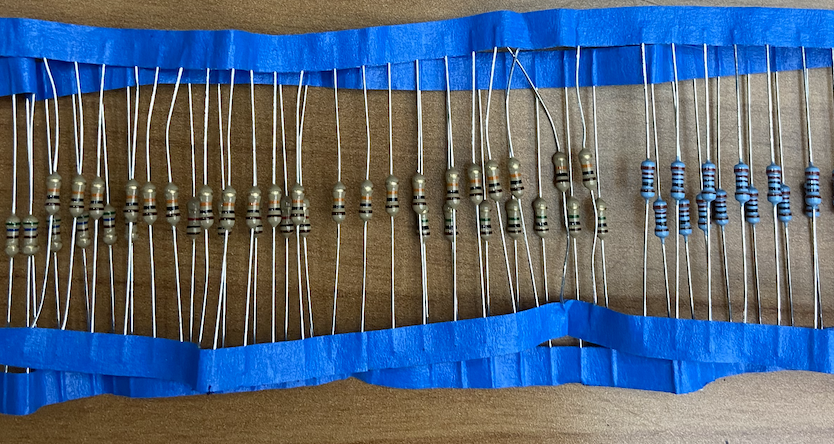

resistors.png Resistors (Assorted) resistor_schematic.png

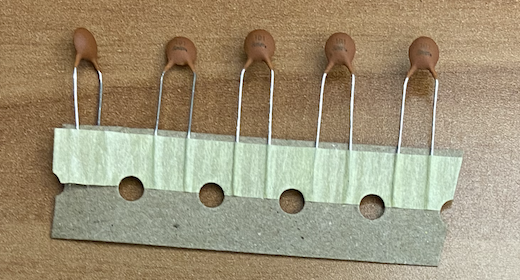

ceramic.png Ceramic Capacitors (100pF) capacitor_schematic.png

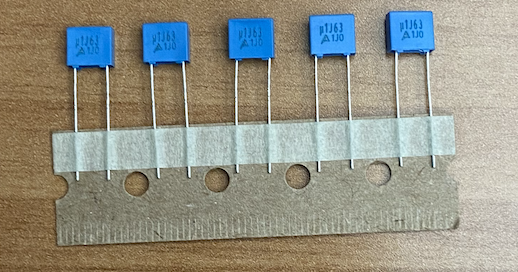

square.png Capacitors 0.1uF capacitor_schematic.png
transistor.png “NPN Epitaxial Silicon Transistors” transistor_schematic.png
