CS 143 / Project 3 / Scene Recognition with Bag of Words

This project's goal was to implement various image recognition techniques. We implemented two different image representation/feature extraction techniques and two different feature detection techniques and evaluated these techniques for scene recognition of 15 different scenes and 1500 total images. The specific image representation and feature detection methods are as follows:

  1. Tiny Images (image representation)
  2. Bag of SIFT (image representation)
  3. 1-Nearest Neighbor (classifier)
  4. Support Vector Machine (classifier)

Explanation of Parameters for each Technique

Tiny Image: 16 x 16 pixel sized tiny images worked the best in my tests.

Bag of SIFT: Vocabulary size of 400 and sample 800 random images to get features from, finally I found a SIFT step size of 8 to work best for vocab building and bag of sift generation.

SVM: The LAMBDA value for SVM classification that I found most successful was 0.00009

Discussion

During testing of various parameters I found that by using the 'fast' option for the vl_dsift call it would speed things up but also change accuracy (this is probably expected). For example, when testing different LAMBDA values for the SVM step if I set LAMBDA to 0.00009 and used 'fast' for my bag of SIFT calculations it would yield 63.9% accuracy where as without 'fast' it yielded 68.2%

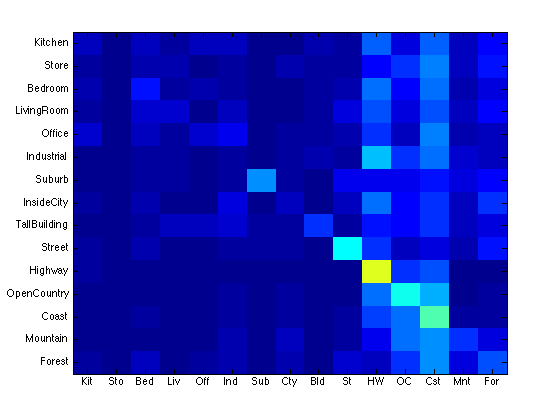

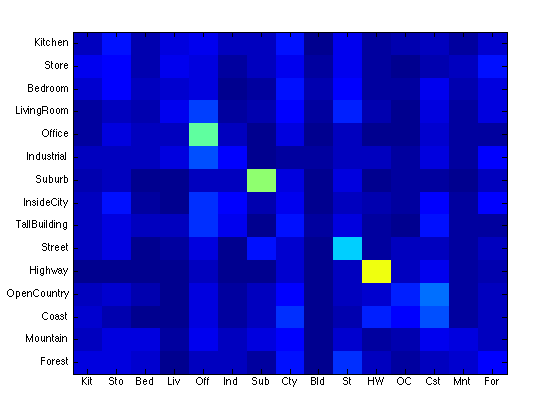

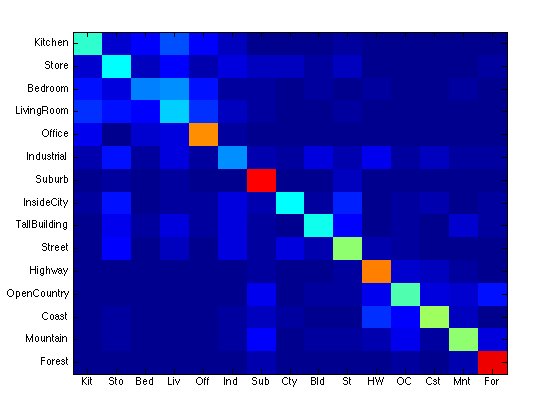

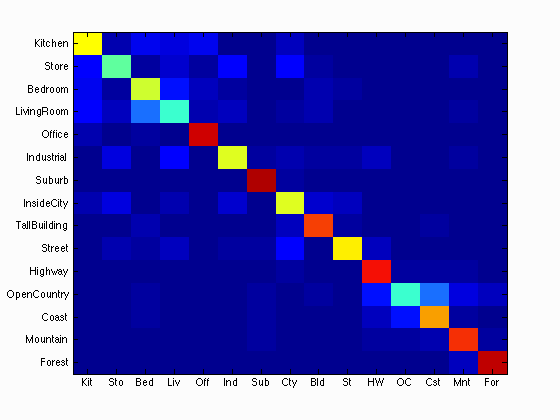

Confusion Matrices for 4 different configurations

Below are the confusion matrices for 4 different technique pairs with their related accuracies.
Tiny Image + 1-Nearest Neighbor Tiny Image + SVM SIFT + 1-Nearest Neighbor SIFT + SVM
Accuracy 20.0% Accuracy 20.1% Accuracy 50.5% Accuracy 68.2%


Results visualization for final SIFT + SVM recognition pipeline.

Accuracy (mean of diagonal of confusion matrix) is 0.682

Category name Accuracy Sample training images Sample true positives False positives with true label False negatives with wrong predicted label
Kitchen 0.610
Store
Store
Office
Office
Store 0.460
InsideCity
LivingRoom
Kitchen
InsideCity
Bedroom 0.570
LivingRoom
Kitchen
Street
LivingRoom
LivingRoom 0.410
Store
Bedroom
Bedroom
Bedroom
Office 0.910
Kitchen
Bedroom
Kitchen
Bedroom
Industrial 0.580
InsideCity
Store
LivingRoom
Street
Suburb 0.940
Mountain
Coast
LivingRoom
Store
InsideCity 0.590
Suburb
Store
Store
Store
TallBuilding 0.810
Store
Street
Bedroom
InsideCity
Street 0.630
Forest
Bedroom
Store
InsideCity
Highway 0.850
OpenCountry
Industrial
Coast
Mountain
OpenCountry 0.410
Coast
Coast
Mountain
TallBuilding
Coast 0.710
OpenCountry
OpenCountry
Mountain
OpenCountry
Mountain 0.820
OpenCountry
Bedroom
Highway
OpenCountry
Forest 0.930
OpenCountry
Store
Mountain
Mountain
Category name Accuracy Sample training images Sample true positives False positives with true label False negatives with wrong predicted label
