Daniel Kocoj (dkocoj)

CS 143 / Project 3 / Scene Recognition with Bag of Words

The goal of the project was to implement a 'visual bag of words', which functions as a vocabulary of visual features. This was paired with a linear SVM in order to classify images. Classification was in the realm of scenes, not specific objects. Specifically, testing and training images ranged from forests to cities to kitchens.

Algorithm Description

Before the algorithm is described in any detail, it must be noted that in addition to a bag of sift features paired with a linear SVM as a classification method, 'tiny image features' and the k-nearest neighbors classifier were also implemented. All results will be discussed in the 'Results' section.

The algorithm works as follows:

Part 1: building the visual vocabulary.

1.1

First, a visual vocabulary must be built from the training data. Each vocab word will ultimately represent a 'feature'. One intuitive way to think about this is that a vocabulary word can be a SIFT descriptor of a coconut. If an image has many coconuts, it is very likely a beach.

1.2

In order to build a vocabulary, SIFT descriptors are sampled from training images (whose category is already known). The descriptors are then clustered with kmeans. Each cluster center represents a vocab word. How many training images was a free parameter, but I found that if I sampled half of the training images given by image_paths, then speed was increased enough to be worth the accuracy cost.

1.3

This was done in the file build_vocabulary.m, and had many free parameters. The function vl_kmeans was used to find the cluster centers of the SIFT descriptors, while the SIFT descriptors were found with vl_dsift.

1.4

Through experimentation, I found that passing a 'size' parameter of 16 to vl_dsift was too big. A 'size' parameter of 8 returned much more accurate results. In addition, my 'step' parameter was 8, but results between 4 and 10 were all suitable. I chose 8 as a tradeoff between speed and accuracy. The 'fast' parameter was left include because I found excluding it only improved accuracy by only about 0.5%, while the time taken to build the vocabulary matrix was much greater.

1.5

Vocabulary size, an argument passed to build_vocabulary, was found to be an extremely important parameter. Accuracy improved by approximately 5-8% when I changed vocabulary size from 400 to 800. Of course, this greatly increased the time it takes to build vocab.mat. Depending on the computer, it can take up to almost an hour, with over 2/3rds of that time taken by vl_kmeans.

Part 2: building the bag of sift features.

2.1

Now that we have our vocabulary words, we can compare our test images (the images to be classified) to them. First, we must extract the SIFT features from the test images. This was done with the same with vl_dsift, and with the same 'size' parameter (8), but with a smaller step (6). The 'fast' option was also included, to have a lower overall computation time.

2.2

The function vl_dsift returned a huge number of descriptors for each image. Each descriptor was compared to the vocabulary, and the vocab word closest to the descriptor was found (using min and vl_alldist2). A histogram of every matched vocab word was created, with 1 added to a histogram bin if the bin was the matched vocab word. Each image had its own histogram created, but then the histogram was normalized to prevent large images (with many dsift features) from having much larger histograms than small images (with few dsift features). The normalized histogram is the image description vector that must be passed to a classifier.

Part 3: the linear SVM classifier.

3.1

The first step in building the classifier is to actually make the SVMs; there were 15 linear SVMs created, using vl_svmtrain. Each SVM was trained as a one-vs-all classifier for a specific category. For example, the 'kitchen' SVM was trained to recognize images as either 'kitchen' or 'not kitchen'. It should be noted that the only free parameter in svm_classify.m is the LAMBDA value that vl_svmtrain takes as input. I found the LAMBDA value that created the highest accuracy results was 0.001. I was getting a range from 0.49 to 0.66 in accuracy and an average of 0.57 with a lambda of 0.01, but when I switched to 0.001 my average accuracy jumped to 0.66.

3.2

Now, all that is left is to apply the classifiers to the test images and figure out which image is which scene; each of the 15 SVMs must be applied to each test image. The SVM with the highest response to a particular test image is used as that test image's predicted category. So if a test image had a response to the 'kitchen' SVM of 0.2, but to the 'mountain' SVM of 0.8, then the image is classified as a 'mountain' scene. After each test image is classified, the scene recognition pipeline is complete.

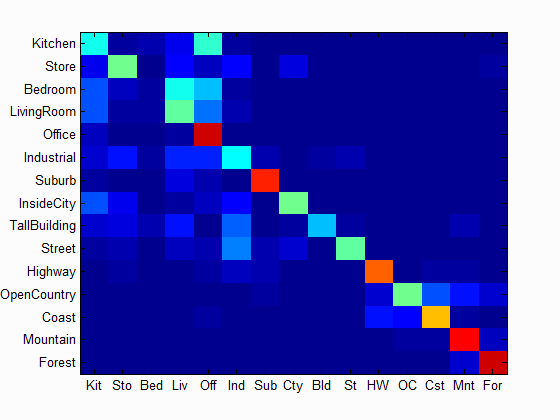

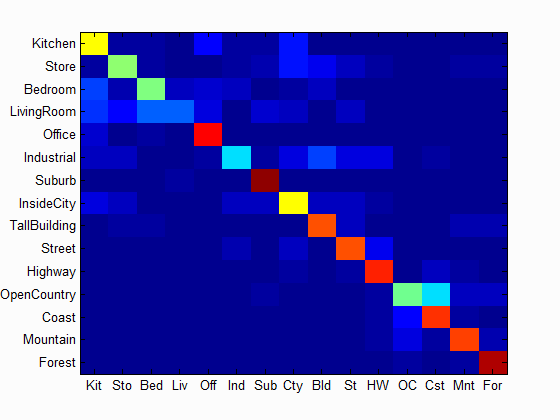

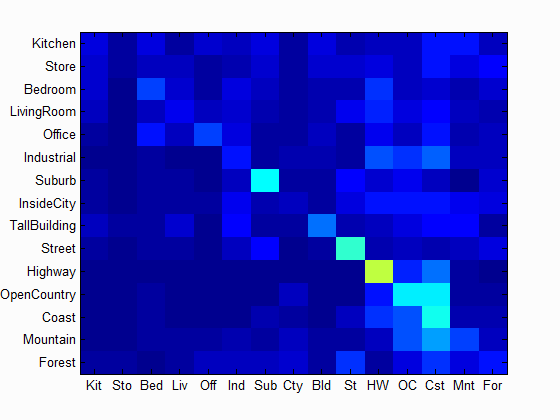

Results Visualization and Discussion
