CS 143 / Project 3 / Scene Recognition with Bag of Words

Project Description

This project consists of three levels of scene recognition, utilizing both a tiny image representation and bag of sift representation of our test images, as well as a nearest neighbor search and linear SVM for classification. The accuracy of these methods is evaluated through a dataset with 15 distinct categories, with 100 images in each category. The results from each descriptor and classifier can be seen below in the form of a confusion matrix and accuracy table.

Algorithm Descriptions

Tiny Images

The Tiny Images algorithm simply uses the built in resizing capability of MATLAB to condense images to a 16 by 16 matrix, which is then resized into a column vector in order to be used as a scene descriptor. This method is quite fast, although the resizing is results in large amounts of loss from the original data, making it overall a poor representation of a scene for recognition purposes.

Bags of SIFT Features

This classification technique extracts SIFT features from each image and then finds the most similar descriptor in a visual "vocabulary" which is created as the result of a kmeans clustering opperation. These features are used to describe a given image within the bounds of a limited vocabulary. This technique results in much less loss of information than tiny images, although it is much slower to compute and is still somehwat limited by the size of the vocabulary.

Nearest Neighbor Classification

The nearest neighbor classifier simply takes the cescription of a scene (Bags of SIFT or Tiny Images) and calculates the "closest" euclidean match to the training data. This is simple metric to measure the fit of a a test image to a training label, however it is prone to being thrown off by features that are generally non-distinctive.

Linear SVM Classifier

The Linear SVM implemented is a simple one verses all implementation, which trains (in this case) 15 separate SVMs, one to recognize each type of scene. The reults of the SVM trainers are then applied to each image, and the one which results in the highest response is considered to be the most likely scene match

Algorithm Results

CS 143 Project 3 results visualization

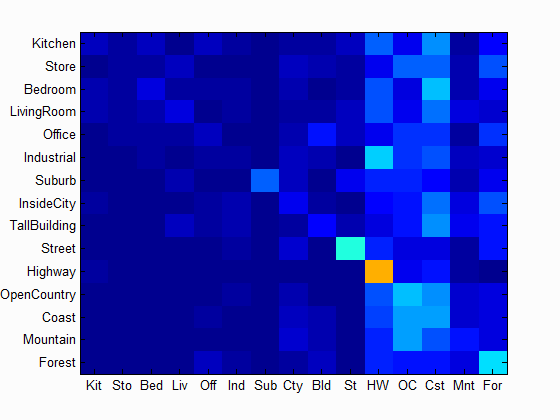

Accuracy (mean of diagonal of confusion matrix) is 0.191

Category name	Accuracy	Sample training images		Sample true positives		False positives with true label		False negatives with wrong predicted label
Kitchen	0.050					Bedroom	Highway	Street	Highway
Store	0.020					LivingRoom	Office	Coast	Kitchen
Bedroom	0.080					Store	Suburb	OpenCountry	Coast
LivingRoom	0.080					Store	Bedroom	Coast	Forest
Office	0.050					Kitchen	TallBuilding	LivingRoom	Coast
Industrial	0.020					InsideCity	Forest	Kitchen	Highway
Suburb	0.210					Store		Forest	OpenCountry
InsideCity	0.100					Coast	Suburb	Street	Coast
TallBuilding	0.110					Mountain	Mountain	Forest	Highway
Street	0.400					Suburb	Suburb	Mountain	Kitchen
Highway	0.690					Suburb	Store	Coast	Kitchen
OpenCountry	0.310					Suburb	Mountain	Coast	Mountain
Coast	0.280					Industrial	Bedroom	OpenCountry	Highway
Mountain	0.130					LivingRoom	Industrial	OpenCountry	Highway
Forest	0.340					Store	Store	Coast	OpenCountry
Category name	Accuracy	Sample training images		Sample true positives		False positives with true label		False negatives with wrong predicted label

CS 143 Project 3 results visualization

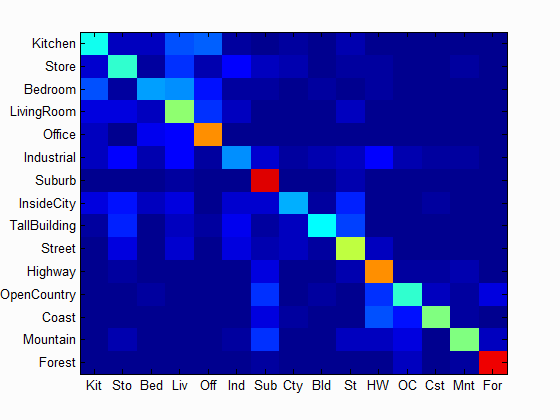

Accuracy (mean of diagonal of confusion matrix) is 0.512

Category name	Accuracy	Sample training images		Sample true positives		False positives with true label		False negatives with wrong predicted label
Kitchen	0.390					Office	Office	Office	LivingRoom
Store	0.420					TallBuilding	TallBuilding	Highway	LivingRoom
Bedroom	0.270					OpenCountry	InsideCity	LivingRoom	LivingRoom
LivingRoom	0.500					Bedroom	Highway	Industrial	Kitchen
Office	0.720					Kitchen	Bedroom	Bedroom	Bedroom
Industrial	0.260					Street	Street	Store	Highway
Suburb	0.900					OpenCountry	OpenCountry	Street	Industrial
InsideCity	0.290					Street	Industrial	Suburb	Suburb
TallBuilding	0.370					InsideCity	Industrial	Street	Street
Street	0.550					InsideCity	TallBuilding	Store	InsideCity
Highway	0.730					Street	OpenCountry	Street	Mountain
OpenCountry	0.410					Coast	Mountain	Highway	Highway
Coast	0.490					Mountain	Industrial	OpenCountry	OpenCountry
Mountain	0.490					Store	Forest	Bedroom	Suburb
Forest	0.890					Mountain	Mountain	OpenCountry	Suburb
Category name	Accuracy	Sample training images		Sample true positives		False positives with true label		False negatives with wrong predicted label

CS 143 Project 3 results visualization

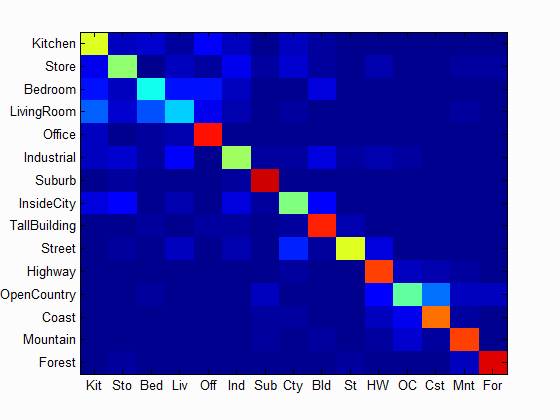

Accuracy (mean of diagonal of confusion matrix) is 0.648

Category name	Accuracy	Sample training images		Sample true positives		False positives with true label		False negatives with wrong predicted label
Kitchen	0.590					LivingRoom	LivingRoom	Office	Store
Store	0.500					Industrial	Bedroom	Industrial	Forest
Bedroom	0.370					Industrial	TallBuilding	Office	Kitchen
LivingRoom	0.300					Industrial	Bedroom	TallBuilding	Bedroom
Office	0.850					TallBuilding	Kitchen	Bedroom	Kitchen
Industrial	0.560					Store	InsideCity	LivingRoom	LivingRoom
Suburb	0.920					Coast	Coast	LivingRoom	InsideCity
InsideCity	0.470					Coast	Street	Kitchen	TallBuilding
TallBuilding	0.830					Highway	LivingRoom	Street	Bedroom
Street	0.600					TallBuilding	TallBuilding	LivingRoom	OpenCountry
Highway	0.790					Coast	OpenCountry	Coast	Coast
OpenCountry	0.460					Mountain	Mountain	Coast	Suburb
Coast	0.770					OpenCountry	Industrial	OpenCountry	Mountain
Mountain	0.800					Coast	Forest	Forest	OpenCountry
Forest	0.910					OpenCountry	OpenCountry	Street	Mountain
Category name	Accuracy	Sample training images		Sample true positives		False positives with true label		False negatives with wrong predicted label
