dx = [-1 0 1; -1 0 1; -1 0 1];
dy = [1 1 1; 0 0 0; -1 -1 -1];
sigma = 2;
g = fspecial('gaussian',4*sigma,sigma);

Ix = imfilter(image,dx,'same');
Iy = imfilter(image,dy,'same');
Ix2 = Ix.^2;
Iy2 = Iy.^2;
Ixy = Ix.*Iy;

gIx2 = imfilter(Ix2,g);
gIy2 = imfilter(Iy2,g);
gIxy = imfilter(Ixy,g);
sizes = size(image);

for i=1:sizes(1)
    for j=1:sizes(2)
        H = [gIx2(i,j) gIxy(i,j); gIxy(i,j) gIy2(i,j)];
        R(i,j) = det(H) - 0.04*(trace(H)^2);
    end
end

%%img = (gIx2.*gIy2)-(gIxy.^2) - 0.06*(((gIx2.^2)+(gIy2.^2)).^2);
%sizes = size(img);
Rlist = sort(R(:)');
min = Rlist(size(Rlist,2) - 100);

x= [];
y = [];
imshow(image);
hold on;
for i=1:sizes(1)
    for j=1:sizes(2)
        if R(i,j) > min
            plot(j,i,'o');
            x = [x i];
            y = [y j];

        end
    end
end

Features

The SIFT has the following steps

In each interest point, calculate the histogram of directions of each quadrant. After normalized, the histograms are added and a feature matrix of (number f feature points x 8) is created. The 8 dimensions of the histogram are up, down, right, left, up-left, up-right, down-left and down-right. The following code do this step

features = zeros(size(x,1),8);


xorig = x;
yorig = y;


dright = [-1 0 1; -1 0 1; -1 0 1];
dleft = [1 0 -1; 1 0 -1; 1 0 -1];
dup = dleft';
ddown  = dright';
dupright = [0 1 1; -1 0 1; -1 -1 0];
dupleft = [1 1 0; 1 0 -1; 0 -1 -1];
ddownright = [-1 -1 0; -1 0 1; 0 1 1];
ddownleft = dupright';



for i=1:size(x,2)
    while x(i) <= feature_width/2
        x(i) = x(i) + 1;
        x(i)
    end
    while x(i) >= (size(image,1) - feature_width/2)
        x(i) = x(i) - 1;
    end

    while y(i) <= feature_width/2
        y(i) = y(i) + 1;
    end
    while y(i) >= (size(image,2) - feature_width/2)
        y(i) = y(i) - 1;
    end

    l = x(i) - feature_width/2;
    c = y(i) - feature_width/2;


    featr = [];
    f = [];
    while l < feature_width
        while c < feature_width
            featr = [0 0 0 0 0 0 0 0];
            featr(1) = featr(1) + sum(sum(imfilter(image(l:l+3,c:c+3),dup)));
            featr(2) = featr(2) + sum(sum(imfilter(image(l:l+3,c:c+3),ddown)));
            featr(3) = featr(3) + sum(sum(imfilter(image(l:l+3,c:c+3),dright)));
            featr(4) = featr(4) + sum(sum(imfilter(image(l:l+3,c:c+3),dleft)));
            featr(5) = featr(5) + sum(sum(imfilter(image(l:l+3,c:c+3),dupright)));
            featr(6) = featr(6) + sum(sum(imfilter(image(l:l+3,c:c+3),dupleft)));
            featr(7) = featr(7) + sum(sum(imfilter(image(l:l+3,c:c+3),ddownright)));
            featr(8) = featr(8) + sum(sum(imfilter(image(l:l+3,c:c+3),ddownleft)));

            f = [f; featr/norm(featr)];
            featr = [];
            c = c+4;
        end
        l = l+4;
        c = y(i) - feature_width/2;
    end
    features(i,:) = sum(f);
    f = [];
end

Matching

This project do not do the matching part. But the idea was, for the set of interest points, chech all the interest points of the another image and compare to see what was the best match.

Results

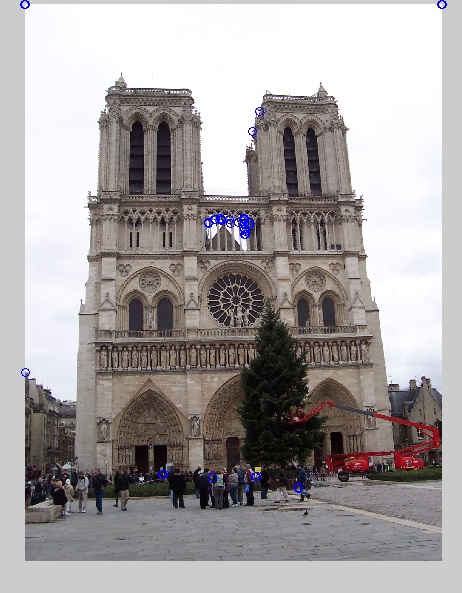

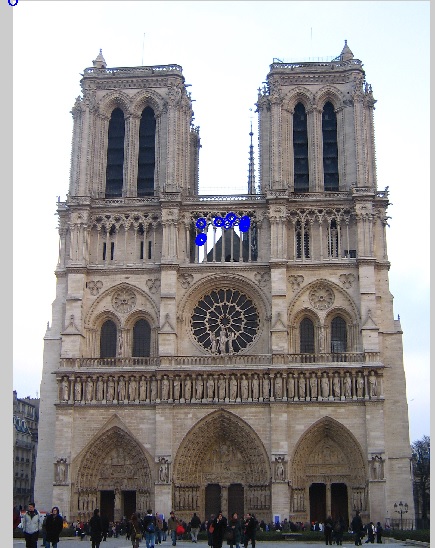

We can empiriclly see that the same cluster of interest points was found in botch pictures
