This local feature matching algorithm takes in 2 images of the same object, and has 3 steps: finds the interest points in each of them, calculates the feature for every interest points and matches the features. Here is a list of detail steps in my implementation:

1. Get interest points from both images. I first blur the image, then filter it with sobel filters to get the gradients with x and y directions: Ix and Iy. Then I use the formula to detect the Harris corners: Ix^2*Iy^2 - IxIy - alpha*(Ix+Iy)^2, where alpha is a value between 0.04 and 0.06. I put a threshold for the Harris corners to elimenate the low values. I used colfilt() for non-maximum suppression, and I manually assign 0s to the image edges so that I will not get false interest points along image edges. The step returns the coordinates non-zero values, which are the interest pionts, in the non-maxinum surpressed image. In this part, I exprimented different values of different parameters. For example, the threshold for Harris corner: if the value is higher, than only the high contract corners can be kept and the overall accuracy will increace; the window size for colfilt funcion: the samller the window size is, the more interest points we will get and thus improve the accuracy.
2. Get features of each interest points. I have tried two different approches for this part.
   • First approach: For each interest points, first take the feature_width by feature_width window around it. Filter this window with a gaussian filter of the same size. Then for each feature_width/4 by feature_width/4 window, calculate the gradient of x and y direction: Ix and Iy. Build the histogram of 8 directions using the value of sqrt(x^2+y^2) based on the theta value of arctan(Iy/Ix). Since there are 4*4 cells in the window, the feature is 4*4(cells) * 8(directions) = 128 dimention. Then I normalised each feature and raise the feature vector to 0.6-0.8. I first tried blur each cell individually, but the accuracy was ~60%. Then I blur the window with a bigger gaussian and the accuracy raised to ~80%.
   • Second approach: First blur the image with gaussian filter. Then I constructed 8 filter of 8 different directions. Convolve the image with these 8 filter seperately. For each interest point, take a feature_width by feature_width around it. Within the window, for each feature_width/4 by feature_width/4 cell, I take the sum of the values in the cell as the value of the histgram of that direction. Then for each feature, I normalise it and raise it to power of 0.6 or 0.7. This approach actually works better for me. It raised the accuracy from ~80% to ~90%.
3. Match the features. For each feature from image1, I calculate the distance between this feature and every feature from image2. Sorting the distance will give me the nearest neighbour and the second nearest neighbour. I take the ratio between the distance of these two neighbours as the confidence. The set of matched features contains the feature that has confidence larger than a threshold. I have tried different values between 0.7 and 0.87 for this threshold.

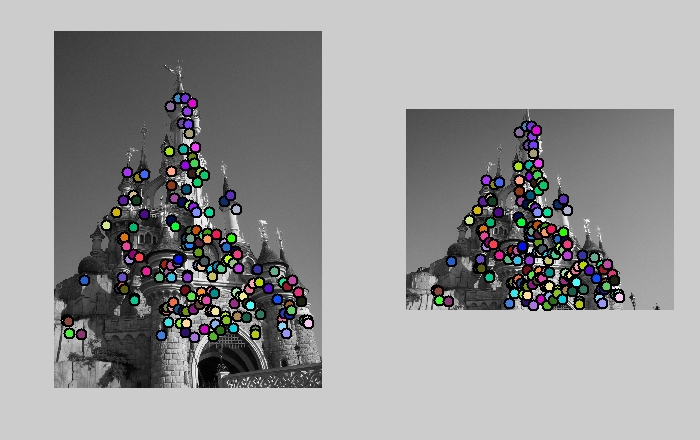

Some images and the distribution of its interest points

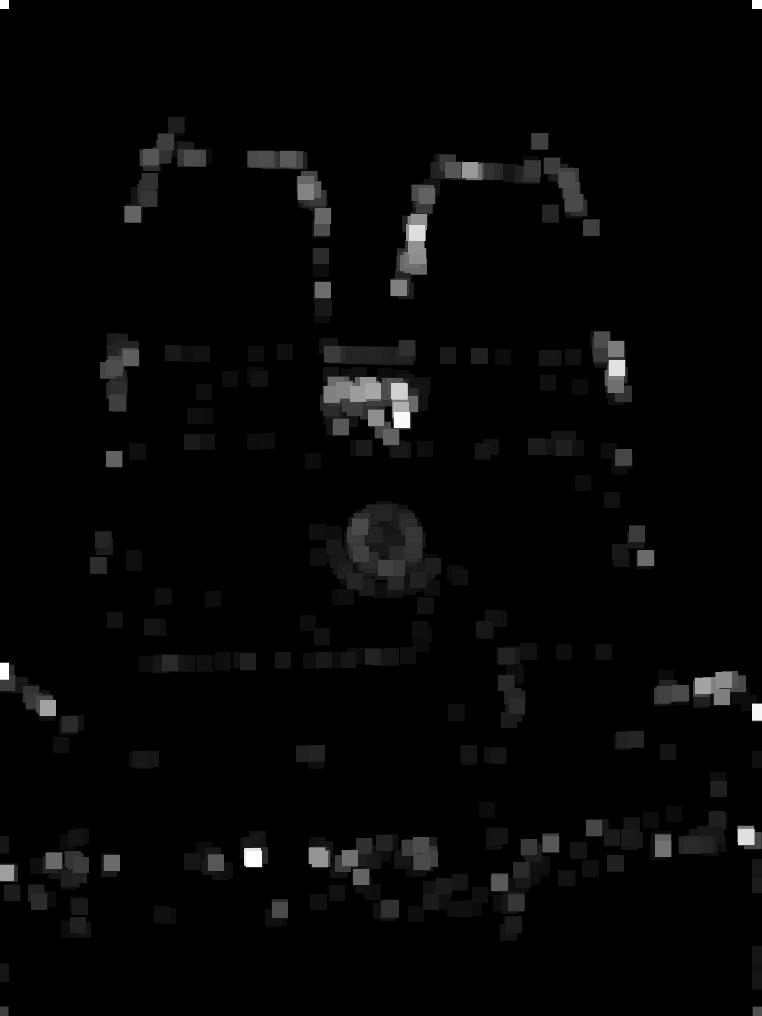

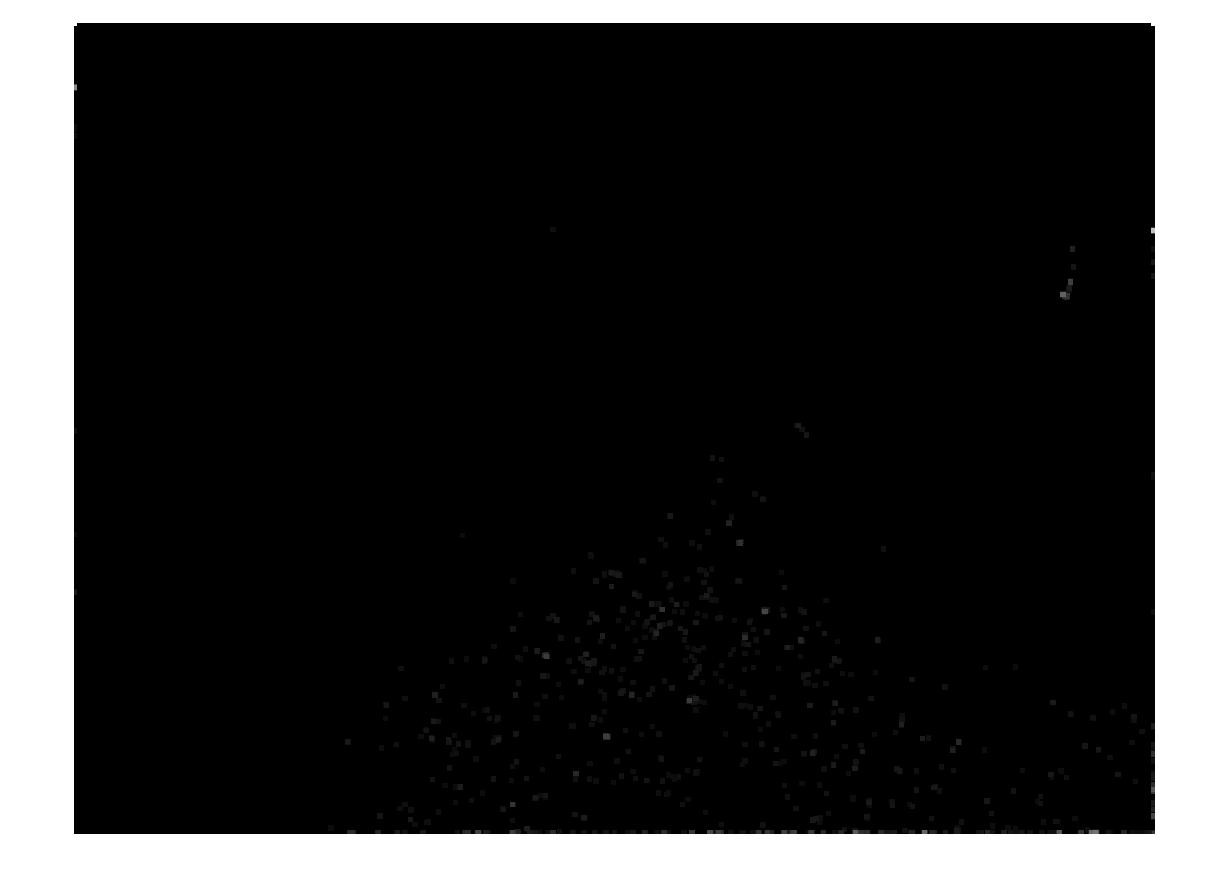

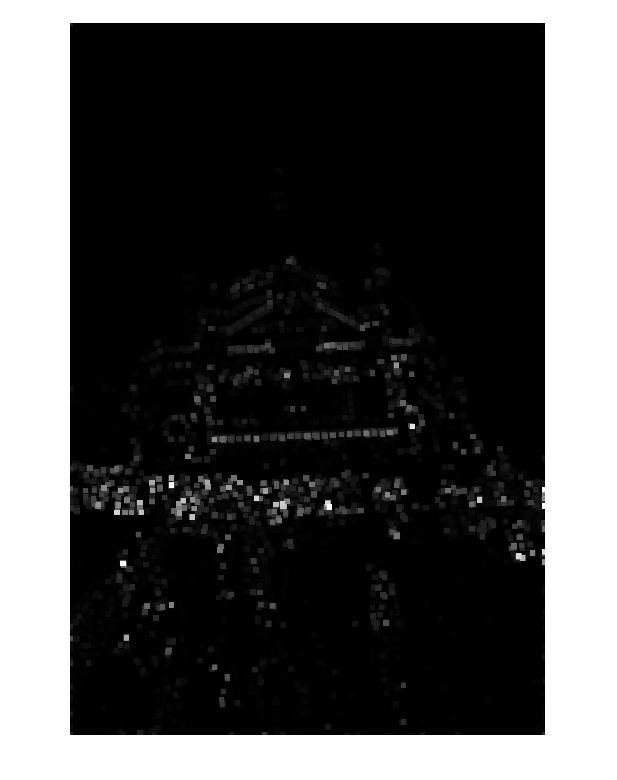

Each grey/white square represents an interest point. This image is saved after the non-maximum suppression. I keep the square so that they are more visible.

The majority of the interest points are not on the statues. Maybe there not many distinctive corners on human faces. Maybe I should experiment a bit more on the parameters.

Results in a table

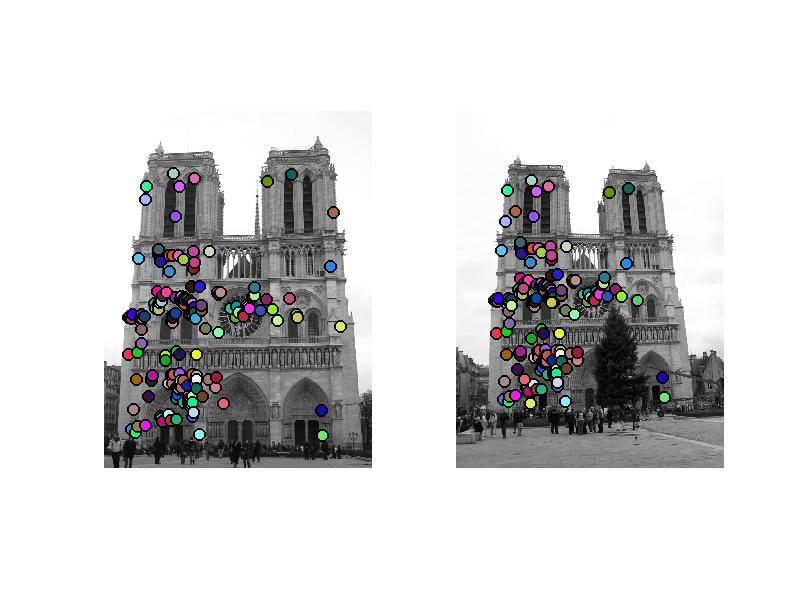

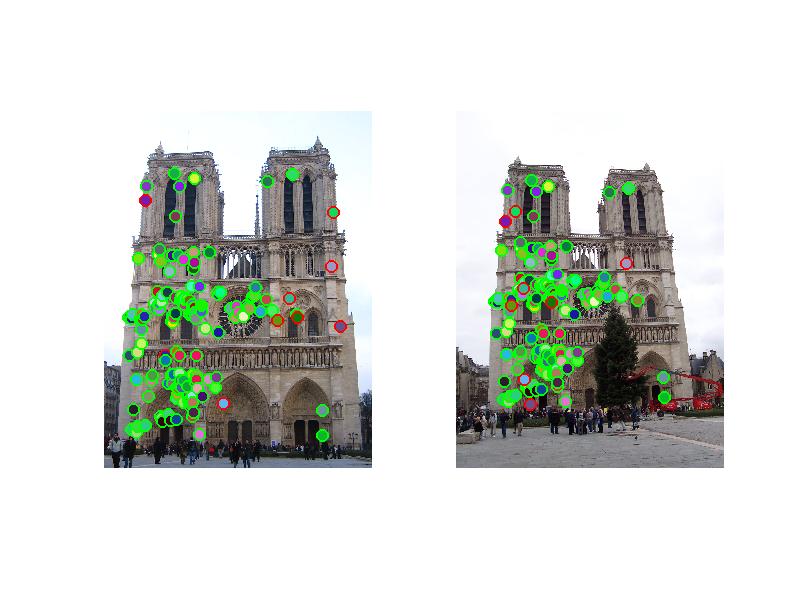

152 total good matches, 9 total bad matches. Accuracy: 94.4%. Window size for colfilt: 5*5; threshold for Harris: 0.0000001; threshold for ratio:0.73;

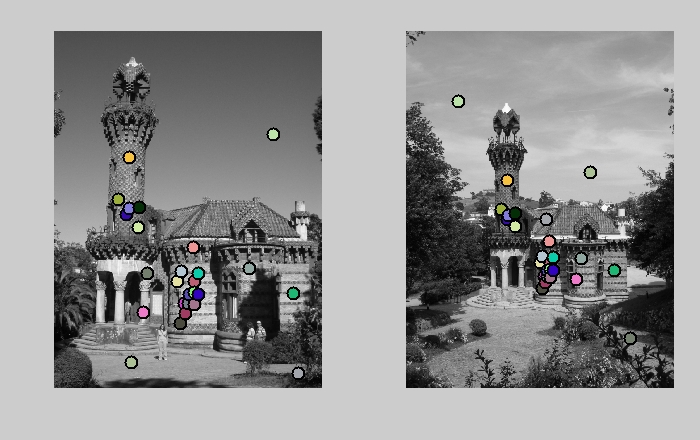

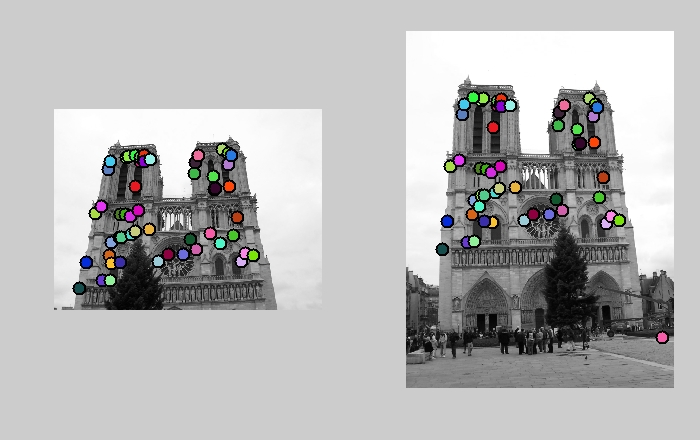

26 total matches.

122 total matches.

59 total matches.

164 total matches.

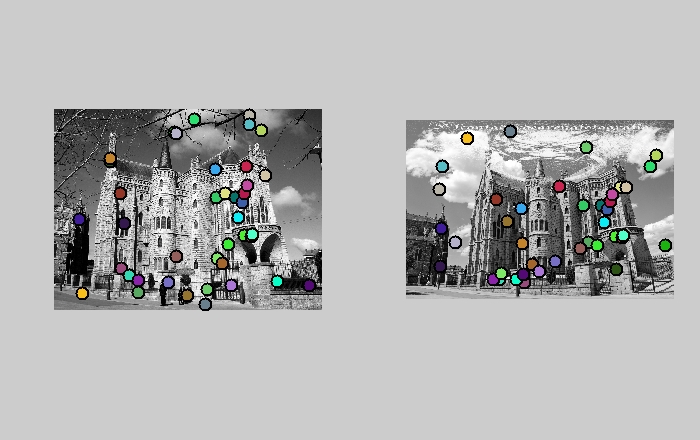

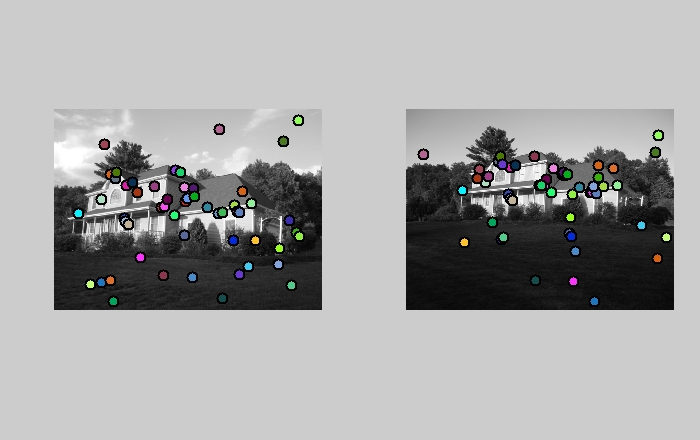

[BAD]The algorithm detected many interest points in the tree or the cloud, which led to mismatches.

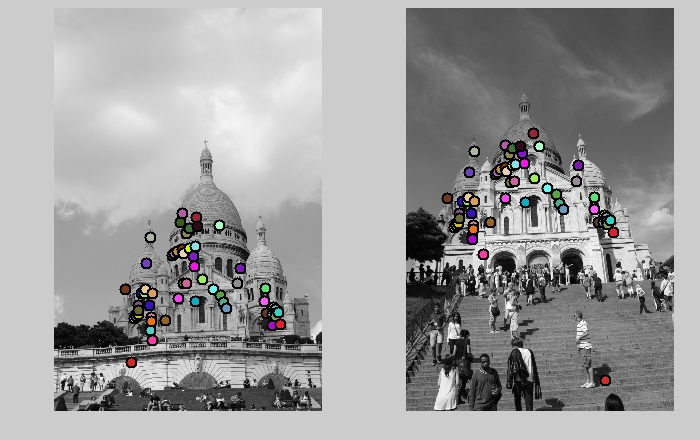

[BAD]54 total matches, but I think only half of them are good matches. Most parts of the pictures are sky and grass, which don't contribute to useful interest points.

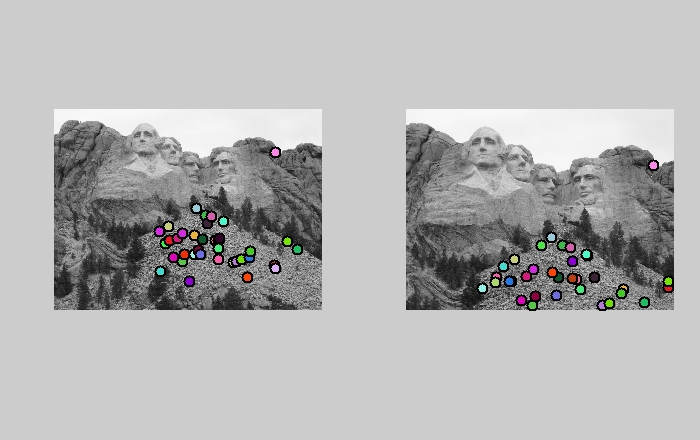

[BAD]37 total matches, but almost all matches are not on the statues.
