CS 143 / Project 2 / Local Feature Matching

Goal

The goal of this project is to implement a local feature matcher that will detect local features in two images taken of the same object from different view points, under different illumination and find their correspondence.

This is done in 3 steps:

  1. Interest point detection: Find interest points in each image
  2. Local feature description: Compute a descriptor vector for each interest point
  3. Feature matching: Find correspondence between features of 2 images

Interest point detection

Interest points (or key points) are found by examining each small window in a given image. If shifting a window in any direction gives a large change in intensity then there's a high change that the window contains a key point.

I implemented the interest point detector based on the algorithm described in the lecture note and Sleziski Algorithm 4.1:

  1. Compute the x and y gradients of the image by convolving it with a derivative of Gaussian (variance = 1), call them Ix and Iy
  2. Compute Ixx = Ix.*Ix, Iyy = Iy.*Iy, Ixy = Ix.*Iy (elements in the second moment matrix)
  3. Convolve each of the three images above with a larger Gaussian (variance = 2), call them g(Ixx), g(Iyy), g(Ixy)
  4. Compute the cornerness function given by g(Ixx)g(Iyy) - g(Ixy)^2- alpha*(g(Ixx) + g(Iyy))^2
  5. Peform non-maxima suppression
I tried to do non-maxima suppression in two ways:
  1. Make a sliding window across the image, keep only the maxima in each window
  2. Threshold the cornerness function above a certain threshold, keep only the local maxima in each connected component

The results for each way of doing non-maxima supression is shown belown. Using connected components is much faster (1.44s) than using a sliding window (16.853s) while the results are very similar. Moreover, we can see that using a sliding window is more susceptible to edges than using connected components.

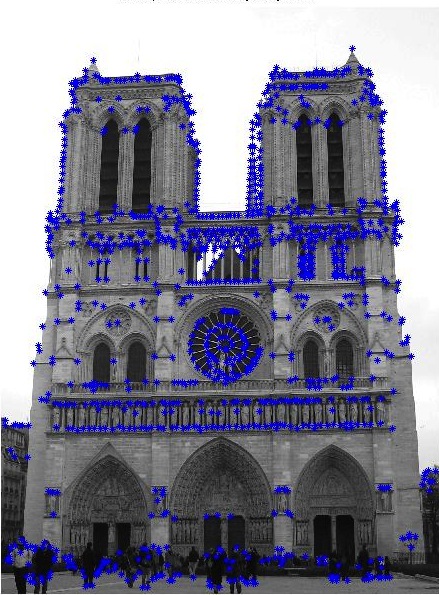

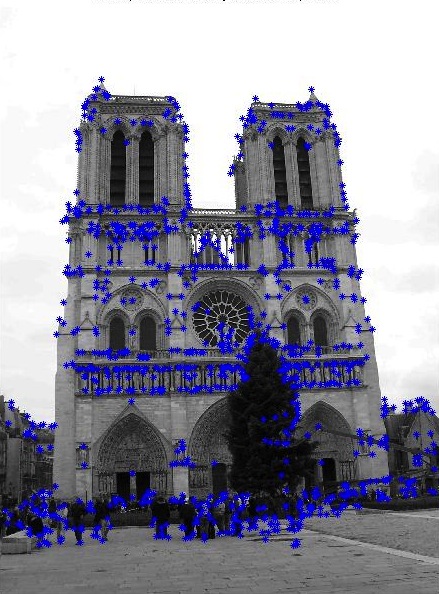

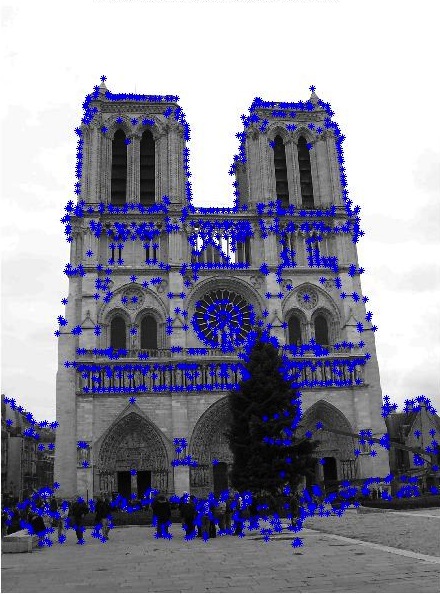

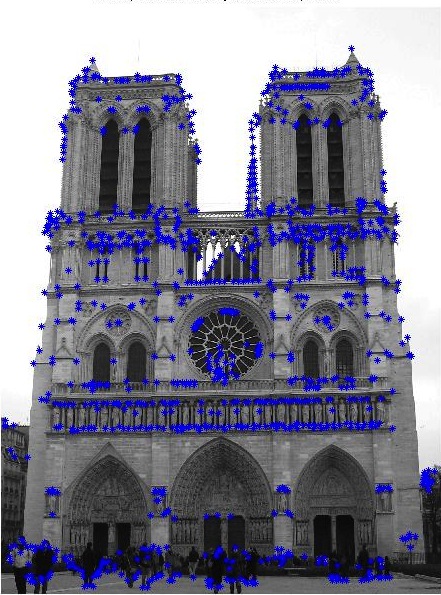

Sliding window Connected components

Local feature description

The local feature descriptors are computed using SIFT as described in lecture note:

  1. Get a frame of size feature_width x feature_width surrounding each key point
  2. Divide each frame into 16 cells (4 x 4)
  3. Compute the gradient histogram for each cell by binning (8 bins)
  4. The resulting descriptor will be formed by concatenating the gradient histograms of the 16 cells (16x8=128 dimensions)

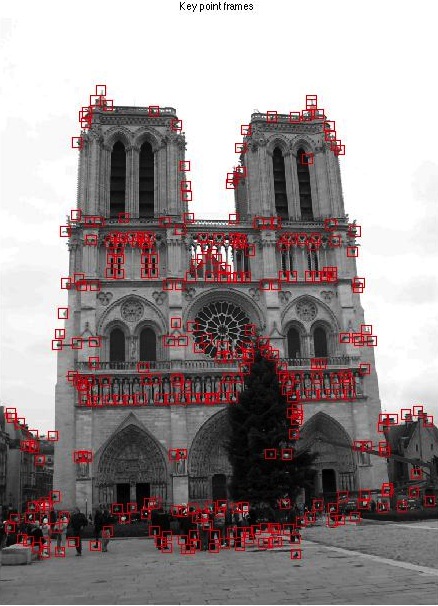

Feature frames
One sample frame

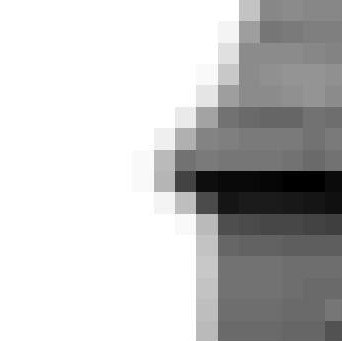

Frame

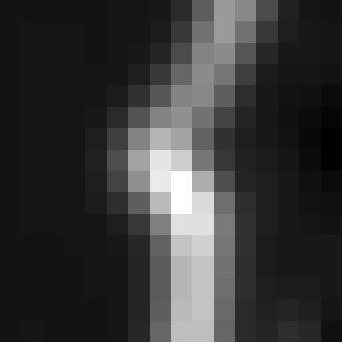

Horizontal gradient

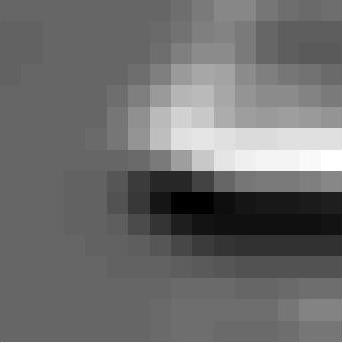

Vertical gradient

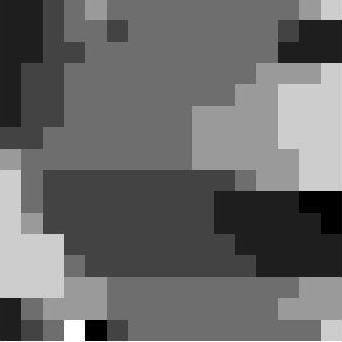

Binned gradient orientations

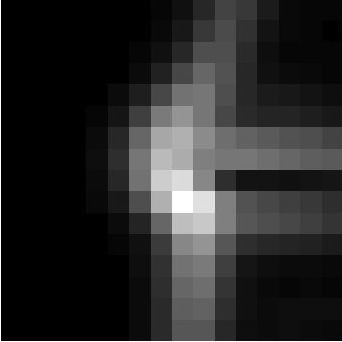

Gradient magnitude

Feature matching

The feature matching phase is done using the ratio test as described in lecture note and Szeliski 4.1.3

  1. Compute the distance matrix between the set of key points of the two images
  2. Sort the distance matrix by row
  3. Take the rows that has the ratio of the nearest neighbor and the second nearest neighbor below a certain threshold

Final results

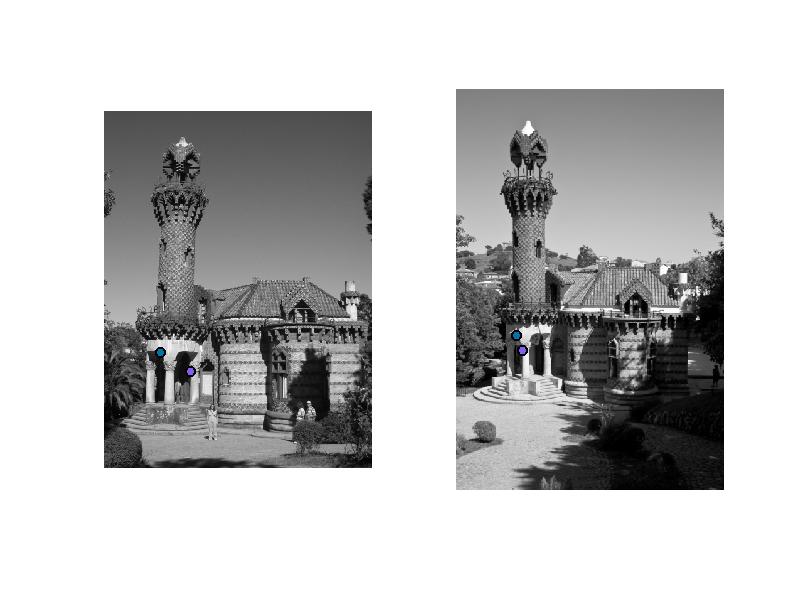

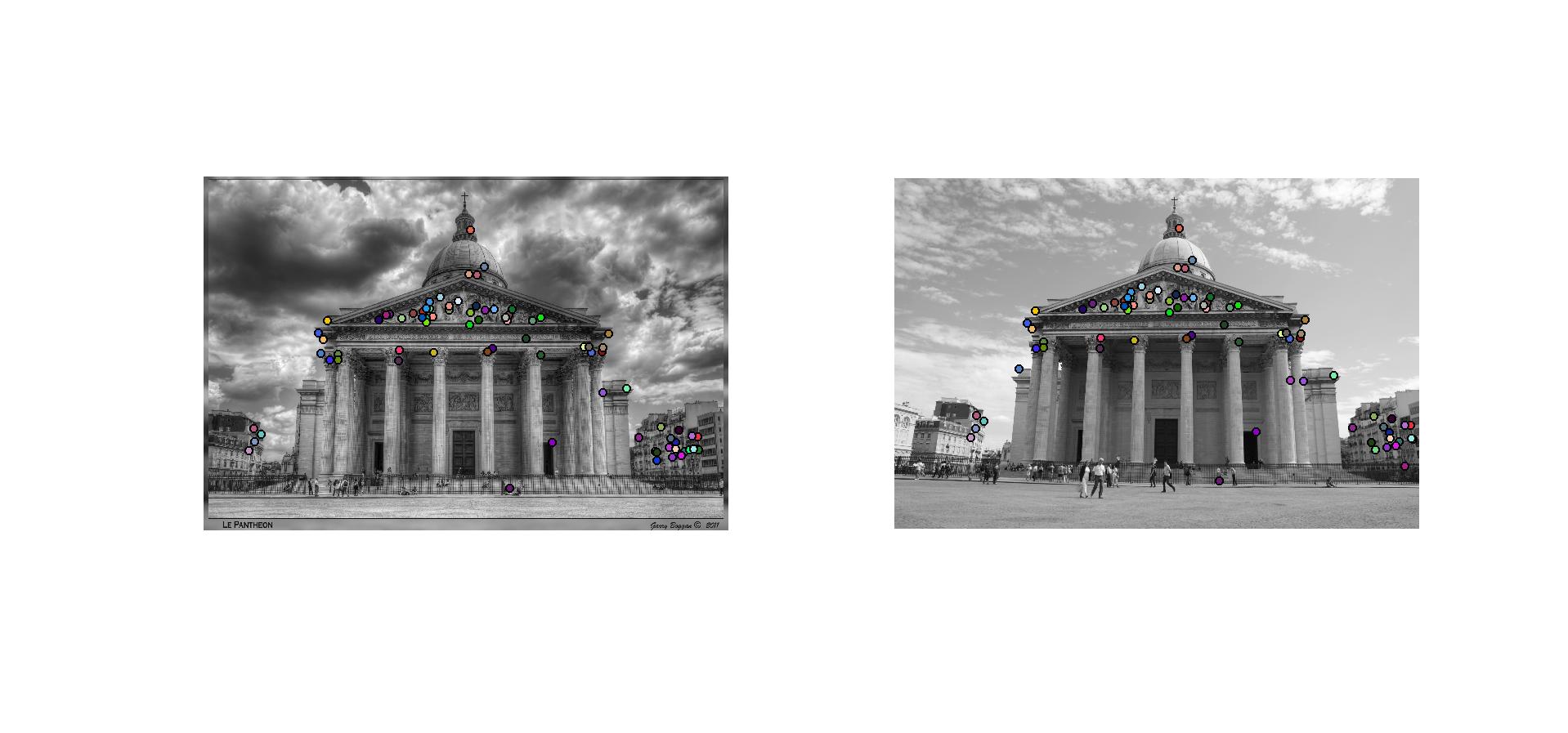

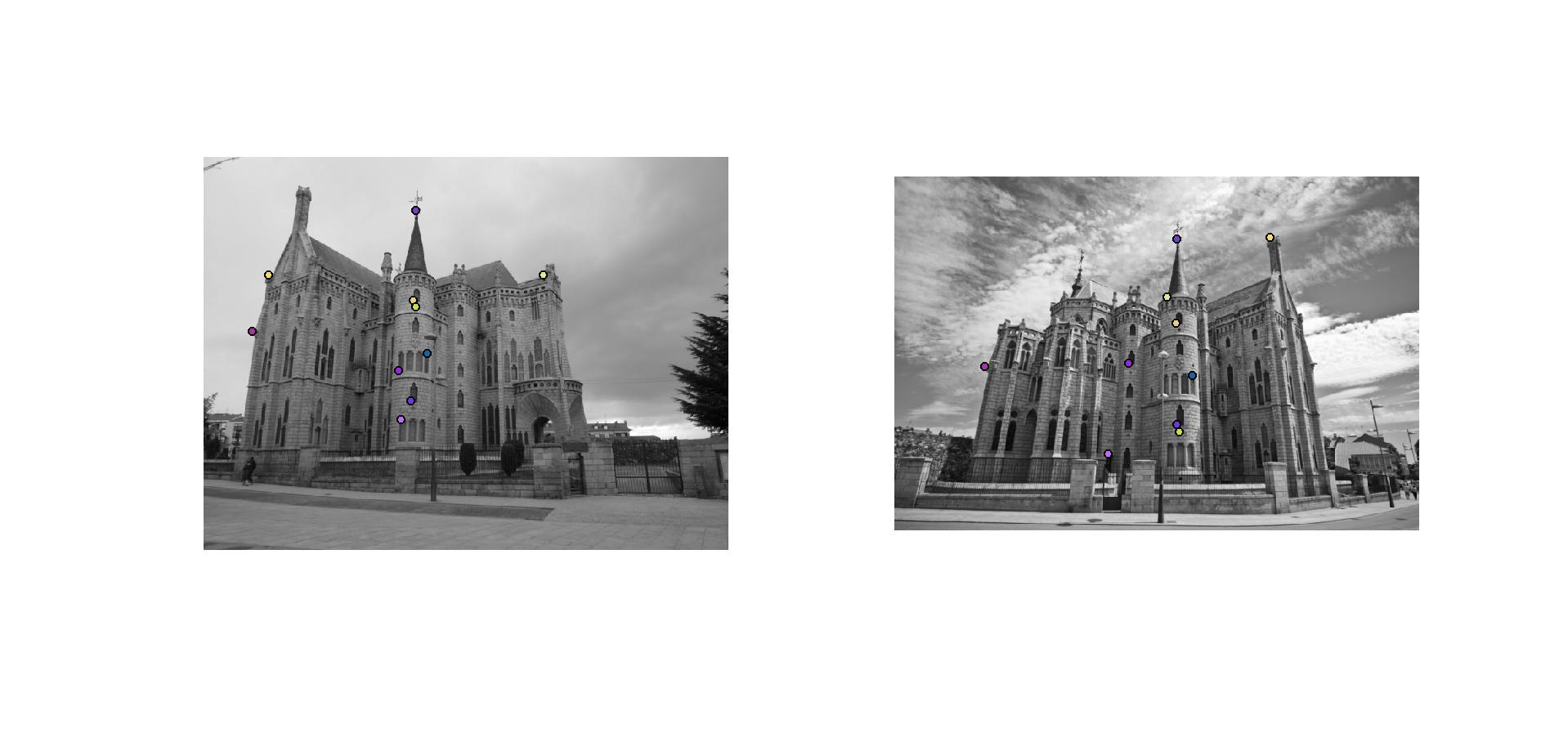

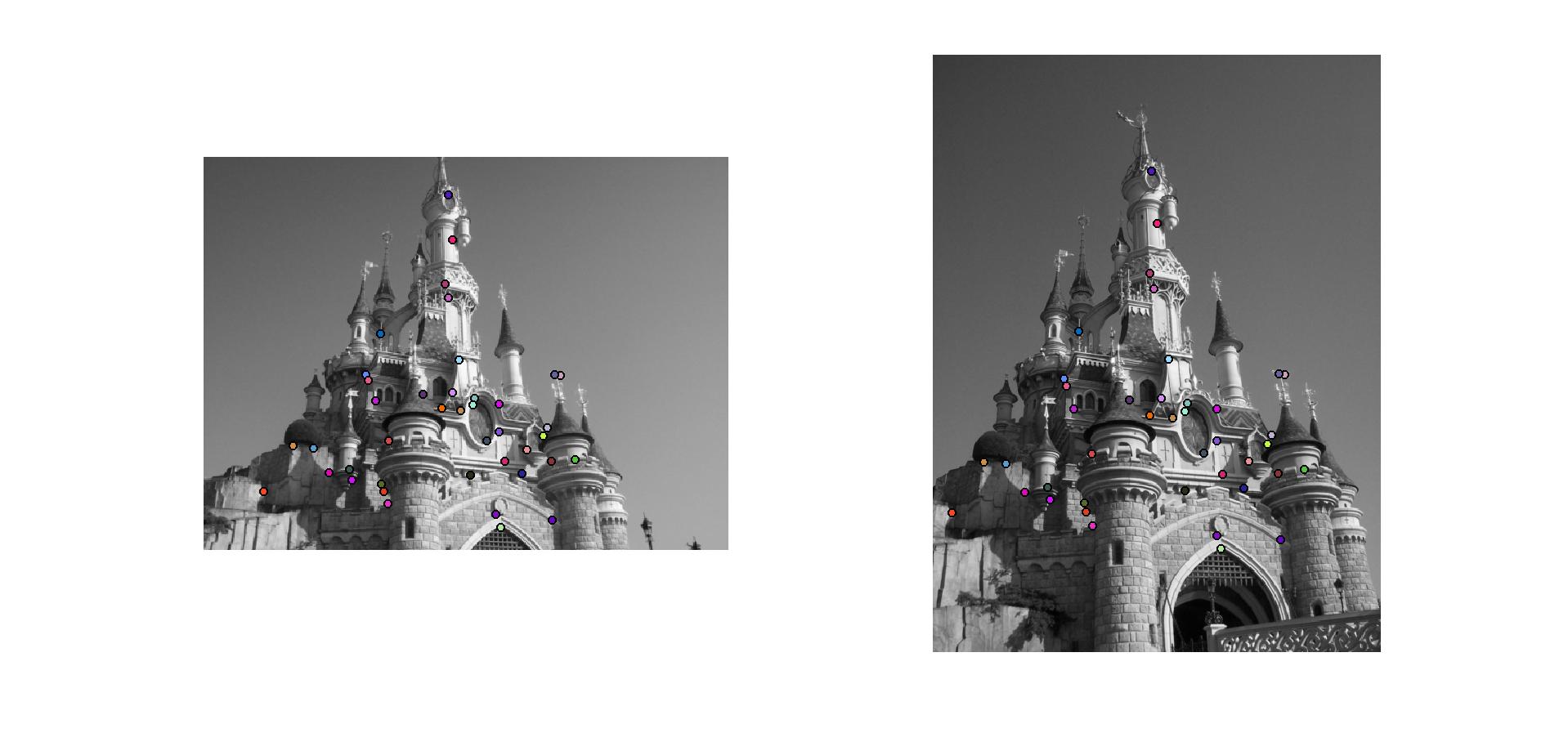

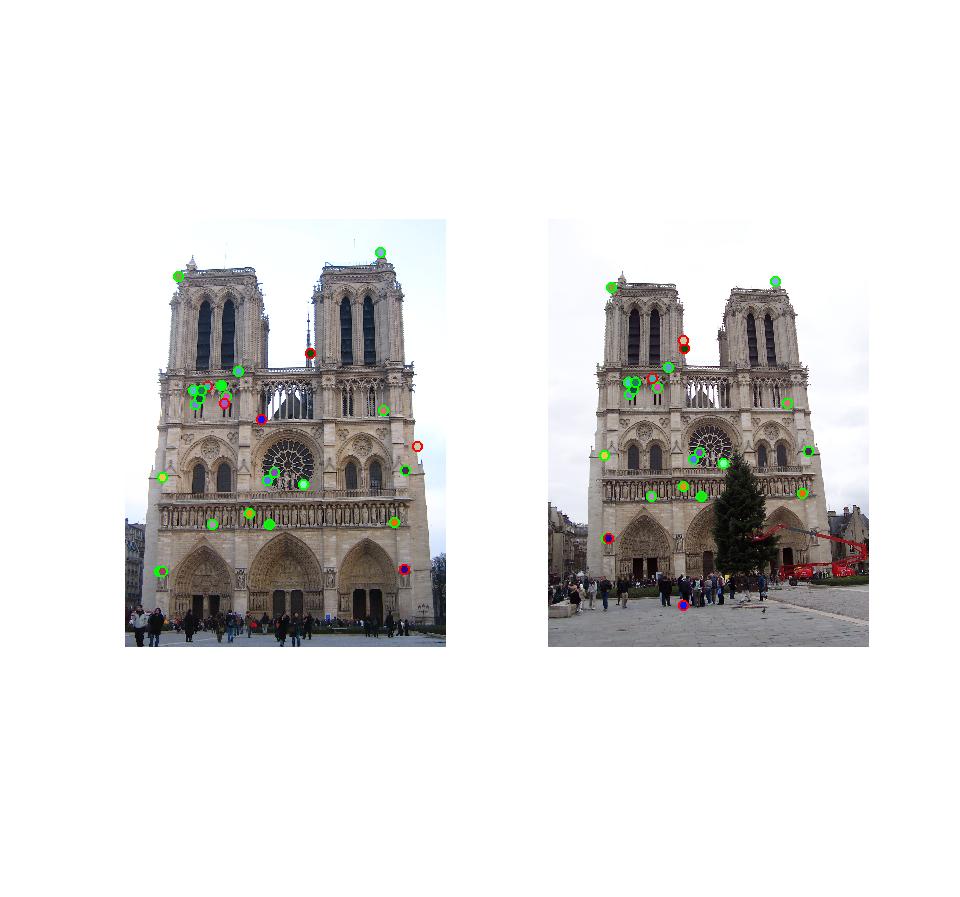

21 good matches, 6 bad matches (78%)

Key Takeaways

  • When finding interest points, using threshold and then find local maxima of connected components is much faster than using a sliding window while producing the same results (or even better)
  • One trick that worked pretty well was to threshold the cornerness function by 10 times the mean value of the function across the whole image
  • Since we are using a fixed frame size (feature_width), choosing two images of similar sizes will produce much better results
  • Since the frame size is only 16x16, the variance of the gaussian used to compute horizontal and vertical gradients shouldn't be too big. I improved the performance from 50% to 78% by changing the variance from 5 to 1
  • Clamping the gradient magnitude to 0.2 doesn't make any difference because almost all the values are less than 0.2
