Example face detection results from this project. We're intentionally trying to foil the face detector in this photo.

Project 4: Face detection with a sliding window
CS 143: Introduction to Computer Vision

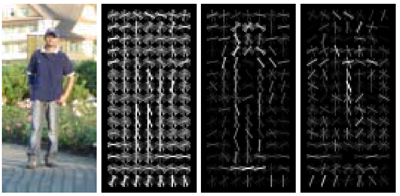

The sliding window model is conceptually simple: independently classify all image patches as being object or non-object. Sliding window classification is the dominant paradigm in object detection and for one object category in particular -- faces -- it is one of the most noticeable successes of computer vision. For example, modern cameras and photo organization tools have prominent face detection capabilities. These success of face detection (and object detection in general) can be traced back to influential works such as Rowley et al. 1998 and Viola-Jones 2001. You can look at these papers for suggestions on how to implement your detector. However, for this project you will be implementing the simpler (but still very effective!) sliding window detector of Dalal and Triggs 2005. Dalal-Triggs focuses on representation more than learning and introduces the SIFT-like Histogram of Gradients (HoG) representation (pictured to the right). Because you have already implemented the SIFT descriptor, you will not be asked to implement HoG. You will be responsible for the rest of the detection pipeline, though -- handling heterogeneous training and testing data, training a linear classifier (a HoG template), and using your classifier to classify millions of sliding windows at multiple scales. Fortunately, linear classifiers are compact, fast to train, and fast to execute. A linear SVM can also be trained on large amounts of data, including mined hard negatives.

Details and Starter Code

The following is an outline of the stencil code:

Creating the sliding window, multiscale detector is the most complex part of this project. It is recommended that you start with a single scale detector which does not detect faces at multiple scales in each test image. Such a detector will not work nearly as well (perhaps 0.3 average precision) compared to the full multi-scale detector. With a well trained multi-scale detector with small step size you can expect to match the papers linked above in performance with average precision above 0.9.


The choice of training data is critical for this task. While an object detection system would typically be trained and tested on a single database (as in the Pascal VOC challenge), face detection papers have traditionally trained on heterogeneous, even proprietary, datasets. As with most of the literature, we will use three databases: (1) positive training crops, (2) non-face scenes to mine for negative training data, and (3) test scenes with ground truth face locations.

You are provided with a positive training database of 6,713 cropped 36x36 faces from the Caltech Web Faces project. We arrived at this subset by filtering away faces which were not high enough resolution, upright, or front facing. There are many additional databases available For example, see Figure 3 in Huang et al. and the LFW database described in the paper. You are free to experiment with additional or alternative training data for extra credit.

Non-face scenes, the second source of your training data, are easy to collect. We provide a small database of such scenes from Wu et al. and the SUN scene database. You can add more non-face training scenes, although you are unlikely to need more negative training data unless you are doing hard negative mining for extra credit.

The most common benchmark for face detection is the CMU+MIT test set. This test set contains 130 images with 511 faces. The test set is challenging because the images are highly compressed and quantized. Some of the faces are illustrated faces, not human faces. For this project, we have converted the test set's ground truth landmark points in to Pascal VOC style bounding boxes. We have inflated these bounding boxes to cover most of the head, as the provided training data does. For this reason, you are arguably training a "head detector" not a "face detector" for this project.

Copies of these data sets are provided with your starter code and are available in /course/cs143/asgn/proj4/data. You probably want to make a local copy of these to speed up training and testing, but please do not include them in your handin.

Write up

For this project, and all other projects, you must do a project report in HTML. In the report you will describe your algorithm and any decisions you made to write your algorithm a particular way. Then you will show and discuss the results of your algorithm. Discuss any extra credit you did, and clearly show what contribution it had on the results (e.g. performance with and without each extra credit component).

You should show how your detector performs on additional images in the data/extra_test_scenes directory.

You should include the precision-recall curve of your final classifier and any interesting variants of your algorithm.

Extra Credit

For all extra credit, be sure to analyze on your web page cases whether your extra credit has improved classification accuracy. Each item is "up to" some amount of points because trivial implementations may not be worthy of full extra credit.

Some ideas:

Finally, there will be extra credit and recognition for the students who achieve the highest average precision. You aren't allowed to modify evaluate_all_detections.m which measures your accuracy.

Web-Publishing Results

All the results for each project will be put on the course website so that the students can see each other's results. In class we will highlight the best projects as determined by the professor and TAs. If you do not want your results published to the web, you can choose to opt out. If you want to opt out, email cs143tas[at]cs.brown.edu saying so.

Handing in

This is very important as you will lose points if you do not follow instructions. Every time after the first that you do not follow instructions, you will lose 5 points. The folder you hand in must contain the following:

Then run: cs143_handin proj4
If it is not in your path, you can run it directly: /course/cs143/bin/cs143_handin proj4


Final Advice


Project description and code by James Hays. Figures in this handout are from Dalal and Triggs. Thanks to Jianxin Wu and Jim Rehg for suggestions in developing this project.

We tried to make an especially easy test case with neutral, frontal faces.

The 2011 class effectively demonstrate how not to be seen by a robot.
