Calling Convention, continued

Functions with more than six arguments

There is a limited number of registers in the x86-64 architecture, and you can write functions in C that take any number of arguments! The calling convention says that the first six arguments max be passed in registers, but that the 7^th and above arguments are always passed in memory on the stack. Specifically, these arguments go into the caller's stack frame, so they are stored above the entry %rsp at the point where the function is called (see call05.{c,s} and call06.{c,s}).

The Stack

You will recall the stack segment of memory from earlier lectures: it is where all variables with automatic lifetime are stored. These include local variables declared inside functions, but importantly also function arguments.

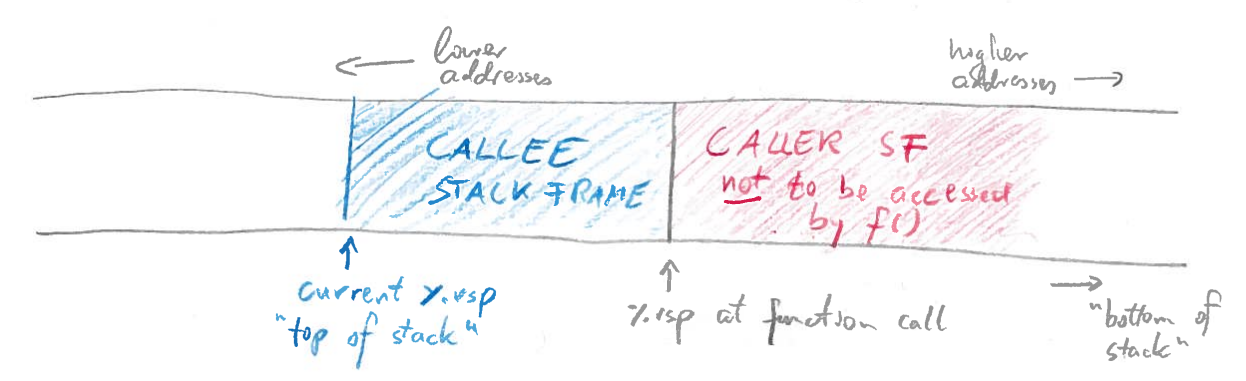

The arguments and local variables of f() live inside f()'s stack frame. Subsequent arguments (second, third, fourth, etc.) are stored at subsequently lower addresses below %rsp (see call02.s and call03.s for examples with more arguments), followed eventually by any local variables in the caller.

How does %rsp change?

The convention is that %rsp always points to the lowest (leftmost) stack address that is currently used. This means that when a function declares a new local variable, %rsp has to move down (left) and if a function returns, %rsp has to move up (right) and back to where it was when the function was originally called.

Moving %rsp happens in two ways: explicit modification via arithmetic instructions, and implicit modification as a side effect of special instructions. The former happens when the compiler knows exactly how many bytes a function requires %rsp to move by, and involves instructions like subq $0x10, %rsp, which moves the stack pointer down by 16 bytes. The latter, side-effect modification happens when instruction push and pop run. These instructions write the contents of a register onto the stack memory immediately to the left of the current %rsp and also modify %rsp to point to the beginning of this new data. For example, pushq %rax would write the 8 bytes from register %rax at address %rsp - 8 and set %rsp to that address; it is equivalent to movq %rax, -8(%rsp); subq $8, %rsp or subq $8, %rsp; movq %rax, (%rsp).

Return Address

As a function executes, it eventually reaches a ret instruction in its assembly. The effect of ret is to return to the caller (a form a control flow, as the next instruction needs to change). But how does the processor know what instruction to execute next, and what to set %rip to?

It turns out that the stack plays a role here, too. In a nutshell, each function call stores the return address as the very first (i.e., rightmost) data in the callee's stack frame. (If the function called takes more than six arguments, the return address is to the left of the 7^th argument in the caller's stack frame.)

The stored return address makes it possible for each function to know exactly where to continue execution once it returns to its caller. (However, storing the return address on the stack also has some dangerous consequences, as we will see shortly.)

We can now define the full function entry and exit sequence. Both the caller and the callee have responsibilities in this sequence.

To prepare for a function call, the caller performs the following tasks:

1. The caller stores the first six arguments in the corresponding registers.

2. If the callee takes more than six arguments, or if some of its arguments are large, the caller must store the surplus arguments on its stack frame (in increasing order). The 7^th argument must be stored at (%rsp) (that is, the top of the stack) when the caller executes its callq instruction.

3. The caller saves any caller-saved registers (see last lecture's list). These are registers whose values the callee might overwrite, but which the caller needs to retain for later use.

4. The caller executes callq FUNCTION. This has an effect like pushq $NEXT_INSTRUCTION; jmp FUNCTION (or, equivalently, subq $8, %rsp; movq $NEXT_INSTRUCTION, (%rsp); jmp FUNCTION), where NEXT_INSTRUCTION is the address of the instruction immediately following callq.

To return from a function, the callee does the following:

1. The callee places its return value in %rax.

2. The callee restores the stack pointer to its value at entry ("entry %rsp"), if necessary.

3. The callee executes the retq instruction. This has an effect like popq %rip, which removes the return address from the stack and jumps to that address (because the instruction writes it into the special %rip register).

4. Finally, the caller then cleans up any space it prepared for arguments and restores caller-saved registers if necessary.

Base Pointers and Buffer Overflow

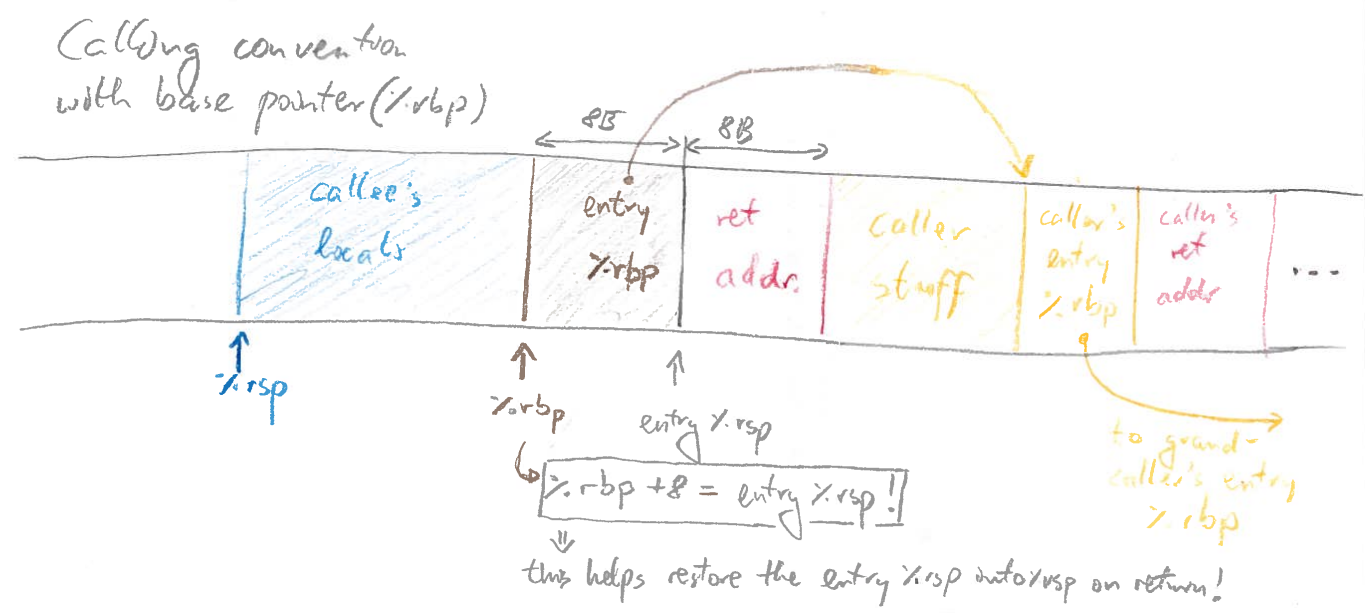

Base Pointers and the %rbp Register

1. The first instruction executed by the callee on function entry is pushq %rbp. This saves the caller's value for %rbp into the callee's stack. (Since %rbp is callee-saved, the callee is responsible for saving it.)

2. The second instruction is movq %rsp, %rbp. This saves the current stack pointer in %rbp (so %rbp = entry %rsp - 8).

   This adjusted value of %rbp is the callee's "frame pointer" or base pointer. The callee will not change this value until it returns. The frame pointer provides a stable reference point for local variables and caller arguments. (Complex functions may need a stable reference point because they reserve varying amounts of space.)

   Note, also, that the value stored at (%rbp) is the caller's %rbp, and the value stored at 8(%rbp) is the return address. This information can be used to trace backwards by debuggers (a process called "stack unwinding").

3. The function ends with movq %rbp, %rsp; popq %rbp; retq, or, equivalently, leave; retq. This sequence is the last thing the callee does, and it restores the caller's %rbp and entry %rsp before returning.

You can find an example of this in call07.s. Lab 3 also uses the %rbp-based calling convention, so make sure you keep the extra 8 bytes for storing the caller's %rbp on the stack in mind!

Buffer overflow attacks

Now that we understand the calling convention and the stack, let's take a step back and think of some of the consequences of this well-defined memory layout. While a callee is not supposed to access its caller's stack frame (unless it's explicitly passed a pointer to an object within it), there is no principled mechanism in the x86-64 architecture that prevents such access.

In particular, if you can guess the address of a variable on the stack (either a local within the current function or a local/argument in a caller of the current function), your program can just write data to that address and overwrite whatever is there.

This can happen accidentally (due to bugs), but it becomes a much bigger problem if done deliberately by malicious actors: a user might provide input that causes a program to overwrite important data on the stack. This kind of attack is called a buffer overflow attack.

Summary

Today, we also understood in more detail how the stack segment of memory is structured and managed, and discussed how it grows and shrinks. We learned about how the compiler manages the stack pointer and how base pointers help it "unwind" the stack for debugging.

We then looked into how the very well-defined memory layout of the stack can become a danger if a program is compromised through a malicious input: by carefully crafting inputs that overwrite part of the stack memory via a buffer overflow, we can change important data and cause a program to execute arbitrary code.

In Lab 3, you will craft and execute buffer overflow attacks on a program yourself!
