Adventures in GPU Programming - Warp

Tala Huhe (thuhe)

The goal of this project was to explore noise functions as well as tesselation on the GPU. Combining them together along with a simple post-processing effect, I was able to obtain a very trippy demo.

Noise

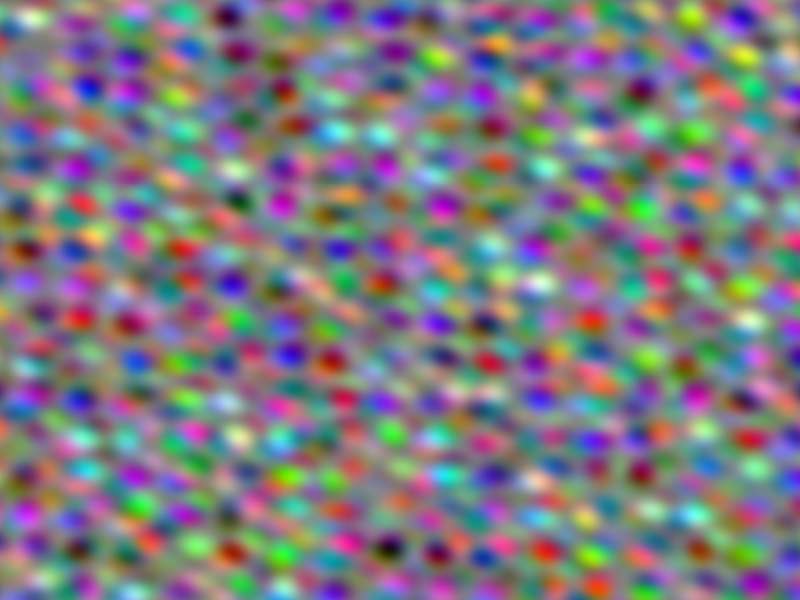

In order to generate noise, I used this nice library. In particular, I used the 4D Simplex noise functions in order to obtain smooth, continuous noise. I was then able to visualize this noise by parametrizing it based on on-screen coordinates, time, and varying factors for each color.


Tesselation

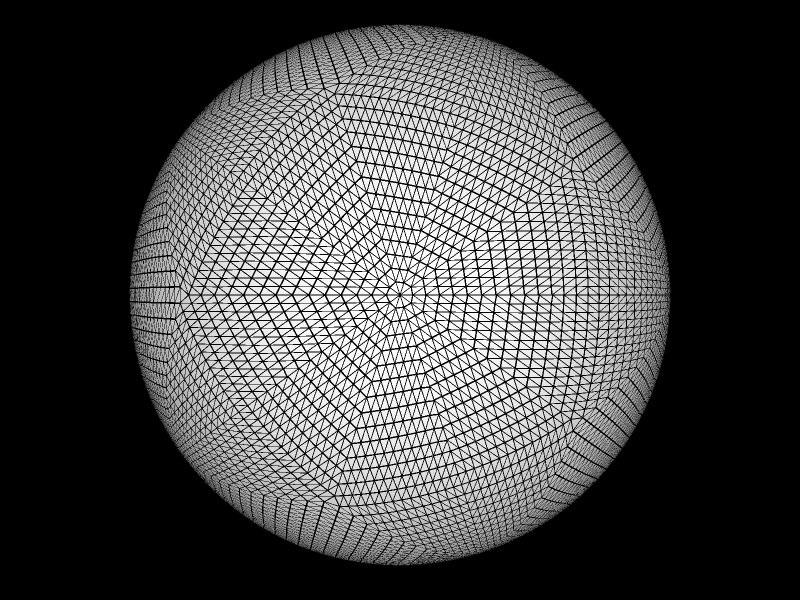

Tesselation was fairly straightforward. I started with a regular icosahedron and tesselated the surface until I reached a sphere.

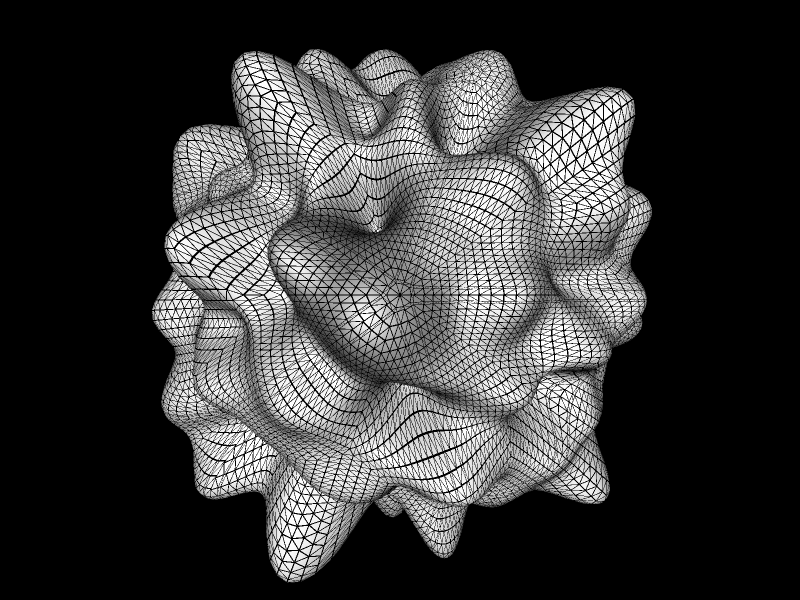

Afterwards, I peturb the surface based on the aforementioned Simplex noise function, parametrized on vertex location and time. In order to compute per-vertex normals for the new surface, I first compute three nearby neighbors by traversing towards each vertex of the original, untesselated triangle by a small epsilon. I then peturb these neighbors and compute the three gradient vectors along the surface of the final surface. Lastly, I cross each pair of these normals to obtain an estimate of the normal, and average the three values together.

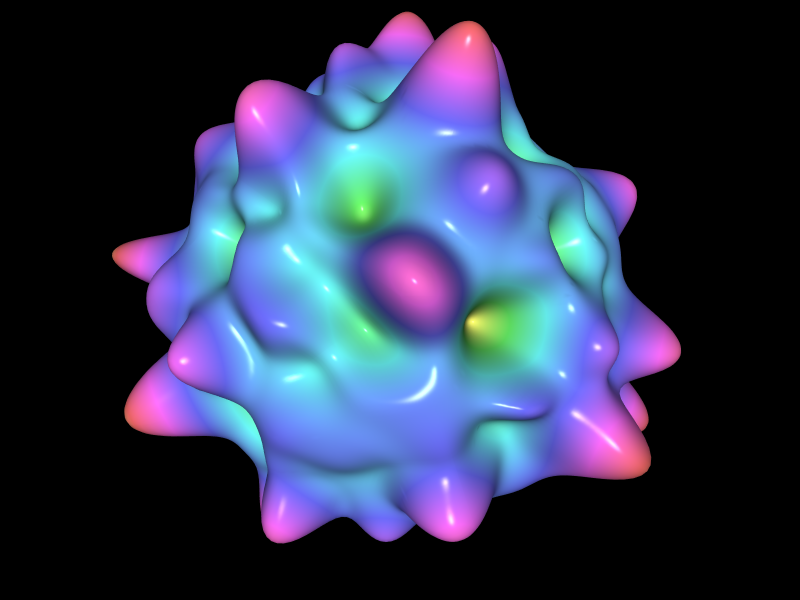

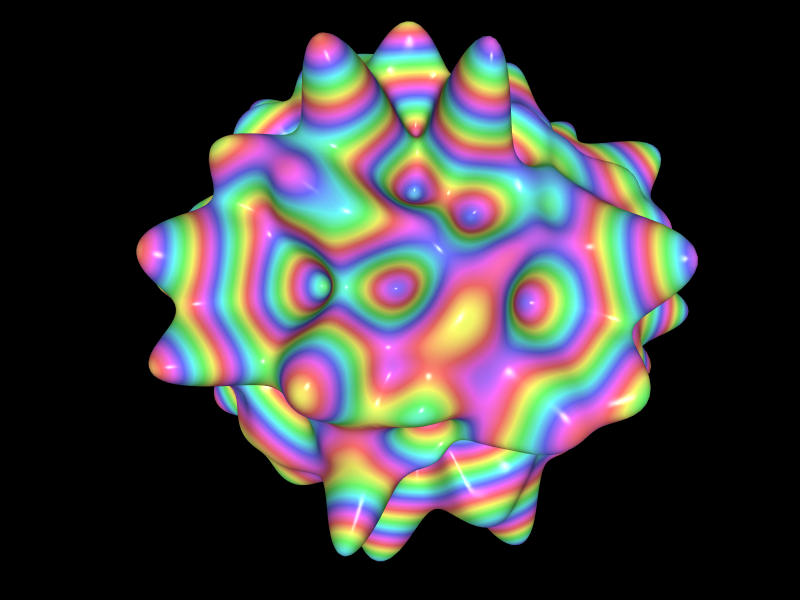

To make the surface more visually interesting, I color the surface of the model based on height from the original sphere. I also add in a Phong lighting and shading model. Finally, I parametrize color and height based on time for some animation.

Varying the parameters caused very...interesting effects.

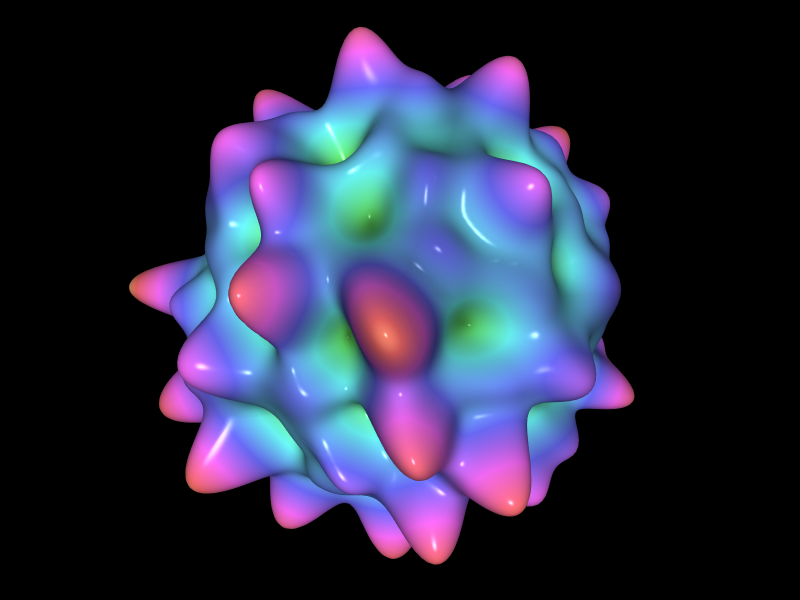

During this step, I also hack an ambient occlusion term. Since we are just peturbing vertices off a sphere, we can just measure how much a vertex protrudes from its local neighborhood and use it as an AO factor.

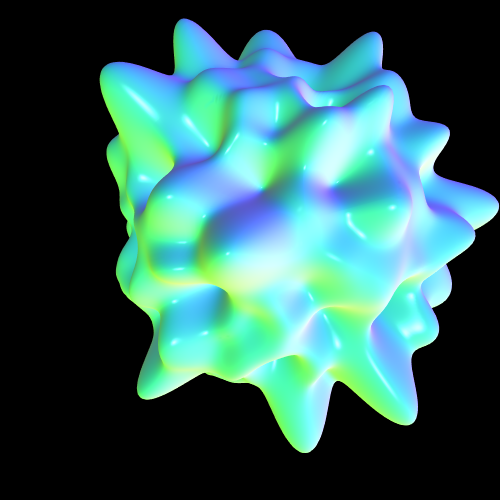

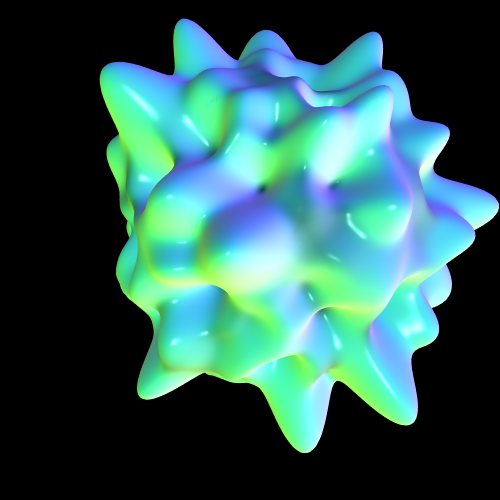

Due to the shifting colors, this effect is not quite noticable from screencaps; it becomes more apparent with a more constant color map. Below, I have colored each vertex by its normal and added the AO map. Note the dark spots in the troughs and dark bands going perpendicular across the saddles.

Post-Processing

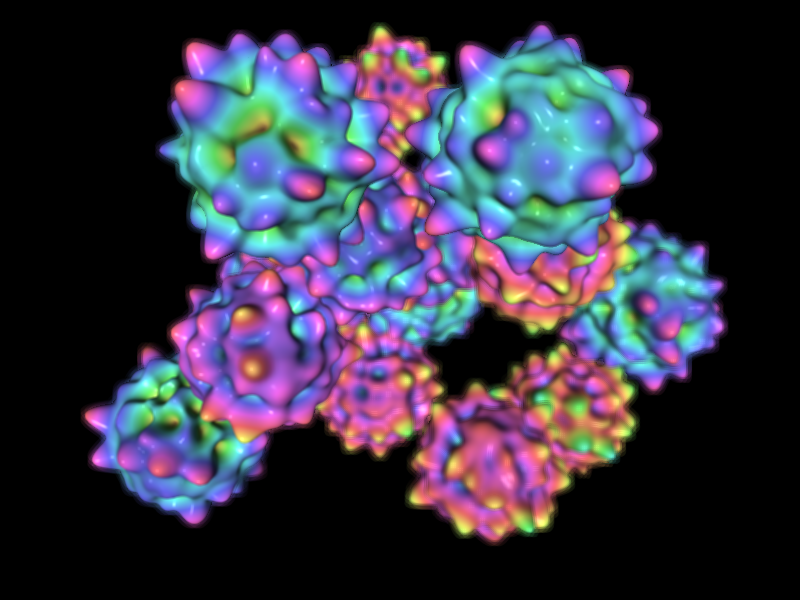

I create a very simple depth-of-field effect by applying a box blur as a function of distance to focal plane. To make this effect more noticable, I added multiple primitives. In order to boost performance, I added dynamic LOD to my tesselator as a function of camera distance and screen size.

Controls

Here are the controls for the demo:
