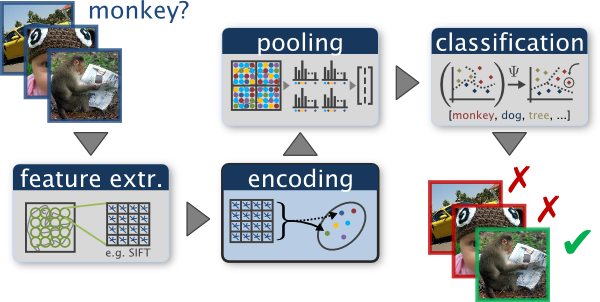

An example of a typical bag of words classification pipeline. Figure by Chatfield et al.
We will perform scene recognition with three different methods. We will classify scenes into one of 15 categories by training and testing on the 15 scene database (Lazebnik et al. 2006).
Task: Implement three scene recognition schemes:
get_tiny_images.m) and nearest neighbor classifier (nearest_neighbor_classify.m).build_vocabulary.m, get_bags_of_words.m) and nearest neighbor classifier.svm_classify.m).
Potentially useful: MATLAB functions: extractHOGFeatures() and others, kmeans(), fitclinear()/fitcsvm(), predict(), pdist2().
Forbidden functions: bagOfFeatures(), evaluateImageRetrieval(), etc.
Example scenes from of each category in the 15 scene dataset. Figure from Lazebnik et al. 2006.
Initial performance: Running projSceneRecBoW.m unchanged will randomly guess the category of every test image. This achieves ~7% accuracy as, by chance with 15 classes, ~1 out of every 15 guesses is correct.
Data: The starter codes trains and tests on 100 images from each category (i.e. 1500 training examples total and 1500 test cases total). In a real research paper, one would be expected to test performance on random splits of the data into training and test sets, but the starter code does not do this to ease debugging.
Evaluation and Visualization: The starter code function create_results_webpage.m builds a confusion matrix and visualizes your classification decisions by producing a table of true positives, false positives, and false negatives as a webpage each time you run projSceneRecBoW.m.
Describe your process and algorithm, show your results, describe any extra credit, and tell us any other information you feel is relevant. We provide you with a LaTeX template writeup/writeup.tex. Please compile it into a PDF and submit it along with your code.
Task:
results_webpage/index.html. The submission script will include this html file.We conduct anonymous TA grading, so please don't include your name or ID in your writeup or code.
get_tiny_images.m)nn_classify.m)build_vocabulary.m)get_bags_of_words.m)svm_classify.m)For all extra credit, please include quantitative analysis showing the impact of the particular method you've implemented. Each item is "up to" some amount of points because trivial implementations may not be worthy of full extra credit. Most of the extra credit focuses on the final bag of words + SVM pipeline of the project, not the baseline tiny image and nearest neighbor methods.
Feature representation extra credit:
Feature quantization and bag of words extra credit:
fitgmdist.Classifier extra credit:
Spatial Pyramid representation and classifier:
Experimental design extra credit:
Lazebnik et al. 2006 is a great paper to read, although we will be implementing the baseline method the paper discusses (equivalent to the zero-level pyramid) and not the more sophisticated spatial pyramid (which is extra credit). For an excellent survey of modern feature encoding methods for bag of words models, please see Chatfield et al. 2011.
Start by implementing the tiny image representation and the nearest neighbor classifier. They are easy to understand, easy to implement, and run very quickly for our experimental setup (less than 10 seconds). The tiny image feature, by Torralba et al., is one of the simplest possible image representations. One simply resizes each image to a small fixed resolution (we recommend 16x16). It works slightly better if the tiny image is made to have zero mean and unit length. This is not a particularly good representation, because it discards all of the high frequency image content and is not especially invariant to spatial or brightness shifts. Torralba et al. propose several alignment methods to alleviate the latter drawback, but we will not worry about alignment for this project. We are using tiny images simply as a baseline of performance with which to compare more sophisticated representations. See get_tiny_images.m for more details.
The nearest neighbor classifier is equally simple to understand. When tasked with classifying a test feature into a particular category, we simply find the "nearest" training example (L2 distance is a sufficient metric) and assigns to the test case the label of the nearest training example. The nearest neighbor classifier has many desirable features: it requires no training, it can represent arbitrarily complex decision boundaries, and it trivially supports multiclass problems. However, it is vulnerable to training noise, which can be alleviated by voting based on the K nearest neighbors (but you are not required to do so). Nearest neighbor classifiers also suffer as the feature dimensionality increases, because the classifier has no mechanism to learn which dimensions are irrelevant for the decision. See nearest_neighbor_classify.m for more details.
Together, the tiny image representation and nearest neighbor classifier will achieve 15-25% accuracy on the 15 scene database. For comparison, chance performance is ~7%.
Bag of words models are a popular technique for image classification inspired by models used in natural language processing. The model ignores or downplays word arrangement (spatial information in the image) and classifies based on a histogram of the frequency of visual words. The visual word "vocabulary" is established by clustering a large corpus of local features. See Szeliski chapter 14.4.1 for more details on category recognition with quantized features. In addition, 14.3.2 discusses vocabulary creation and 14.1 covers classification techniques.
After we have implemented a baseline scene recognition pipeline, we shall move on to a more sophisticated image representation: bags of quantized feature descriptors. Before we can represent our training and testing images as bags of feature descriptors, we first need to establish a vocabulary of visual words, which will represent the similar local regions across the images in our training database. We will form this vocabulary by clustering with k-means the many thousands of local feature vectors from our training set.
Note: This is not the same as finding the k-nearest neighbor feature descriptors! For example, given the training database, we might start by clustering our local feature vectors into k=50 clusters. The centroids of these clusters are our visual word vocabulary. For any new feature point we observe, we can find the nearest cluster to know its visual word. As it can be slow to sample and cluster many local features, the starter code saves the cluster centroids and avoids recomputing them on future runs. Be careful of this if you re-run with different parameters. See build_vocabulary.m for more details.
Now we are ready to represent our training and testing images as histograms of visual words. For each image we will densely sample many feature descriptors. Instead of storing hundreds of feature descriptors, we simply count how many feature descriptors fall into each cluster in our visual word vocabulary. This is done by finding the nearest neighbor k-means centroid for every feature descriptor. Thus, if we have a vocabulary of 50 visual words, and we detect 220 features in an image, then our bag of words representation will be a histogram of 50 dimensions where each bin counts how many times a feature descriptor was assigned to that cluster and sums to 220. The histogram should be normalized so that image size does not dramatically change the bag of feature magnitude. See get_bags_of_words.m for more details.
You should now measure how well your bag of words representation works when paired with a nearest neighbor classifier. There are many design decisions and free parameters for the bag of words representation (number of clusters, sampling density, sampling scales, feature descriptor parameters, etc.) so performance might vary from 50% to 60% accuracy.
The last task is to train 1-vs-all linear SVMs to classify the bag of words feature space. Linear classifiers are a simple learning model. The feature space is partitioned by a learned hyperplane and test cases are categorized based on which side of that hyperplane they fall on. Despite this model being far less expressive than the nearest neighbor classifier, it will often perform better. For example, maybe in our bag of words representation 40 of the 50 visual words are uninformative. They simply don't help us make a decision about whether an image is a 'forest' or a 'bedroom'. Perhaps they represent smooth patches, gradients, or step edges which occur in all types of scenes. The prediction from a nearest neighbor classifier will still be heavily influenced by these frequent visual words, whereas a linear classifier can learn that those dimensions of the feature vector are less relevant and thus downweight them when making a decision.
There are numerous methods to learn linear classifiers, but we will find linear decision boundaries with a support vector machine. You do not have to implement the support vector machine. However, linear classifiers are inherently binary and we have a 15-way classification problem. To decide which of 15 categories a test case belongs to, you will train 15 binary 1-vs-all SVMs. 1-vs-all means that each classifier will be trained to recognize 'forest' vs. 'non-forest', 'kitchen' vs. 'non-kitchen', etc. All 15 classifiers will be evaluated on each test case and the classifier which is most confidently positive "wins". E.G. if the 'kitchen' classifier returns a score of -0.2 (where 0 is on the decision boundary), and the 'forest' classifier returns a score of -0.3, and all of the other classifiers are even more negative, the test case would be classified as a kitchen even though none of the classifiers put the test case on the positive side of the decision boundary. When learning an SVM, you have a free parameter 'lambda' which controls the model regularization. Your accuracy will be very sensitive to lambda, so be sure to test many values. See svm_classify.m for more details.
Now you can evaluate the bag of words representation paired with 1-vs-all linear SVMs. Accuracy should be from 50% to 60% depending on the parameters. You can do better still if you implement extra credit suggestions.
Extracting features, clustering to build a universal dictionary, and building histograms from features can be slow. A good implementation can run the entire pipeline in less than 10 minutes, but this may be at the expense of accuracy (e.g., too small a vocabulary of visual words or too sparse a sampling rate). Save intermediate results and/or make use of Matlab's code sections functionality if you are trying to fine tune one part of the pipeline.
Project description and code by James Hays and Sam Birch. Figures in this handout from Chatfield et al. and Lana Lazebnik.
