Project Description
In
this project I used the Kanada-Lucas-Tomasi tracker method to calculate the
optical flow of observed interest points through a video clip. In the second
part of the project, I used the optical flow paths of the interest points to
reconstruct the 3D geometry of the object in the video.
Feature Tracking
The
starting point for this algorithm was to use an interest point detector to
select the points that would be tracked. The stencil code suggested the Harris
Detector to find corner points, and I decided to set my quality threshold to
the top scoring 200 points. After the first 200 it seemed to me that there were
too many spurious points from the background region being selected.
Once
the points were selected, I used the KLT tracker to follow the points through
the images in the `hotel' film sequence. I used the Matlab `gradient' function
to calculate the horizontal and vertical gradients for use in the KLT sequence.
I used a 15x15 pixel window as the neighborhood for calculating the displacement
of the center pixel. I think this operation could have been sped up a little by
using integral images for the Ix, Iy, It matrices, but my code had a bug. I
used convolution instead to find the summed neighborhood values. The code for
both of these methods is included with my handin.

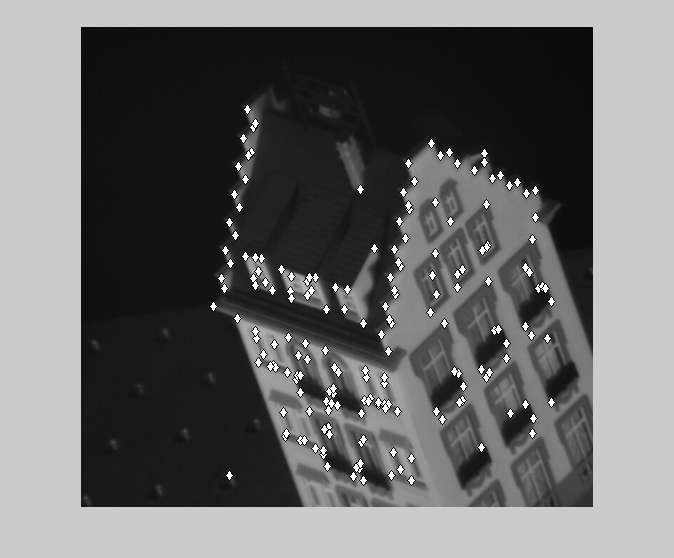

The
animated image below shows the predicted locations of the feature points I used
though the whole image sequence. It is clear that there is very good agreement

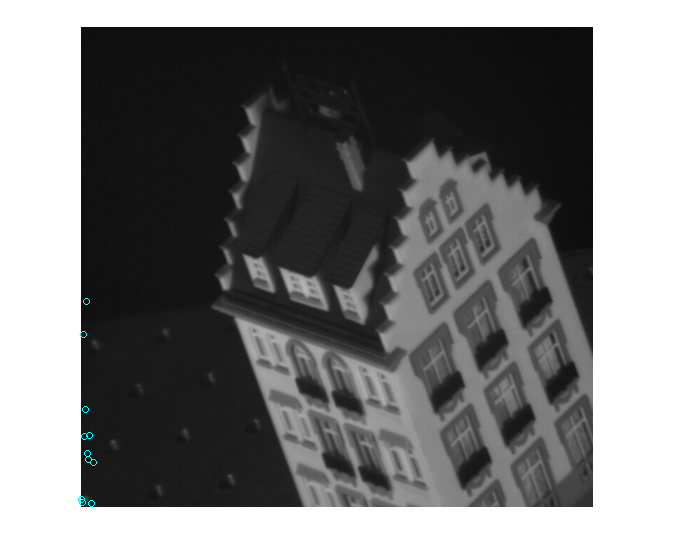

for all of the points that are actually located on the hotel. There is one
point that is on the field in the background that isn't moving correctly. To
capture the correct motion for this point, I would have had to use an image
pyramid.
|
|
|
Structure from Motion
After
correctly tracking the feature points through the image sequence, I used the
factorization methods in "Shape and Motion from Image Streams under
Orthography: a Factorization Method," Tomasi and Kanade, 1992 and "A
Sequential Factorization Method for Recovering Shape and Motion from Image
Streams," Morita and Kanade, 1997 to calculate the 3D coordinates of the
feature points and the view direction vector of the orthogonal camera viewing
the image sequence. I followed the method outlined by Morita and Kanade as
closely as possible.

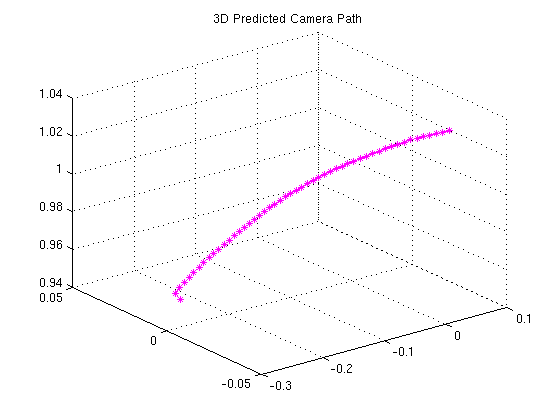

My
3D reconstruction of the hotel is shown in several different views below, as
well as the estimated path of the camera. An interactive 3D model of the hotel
reconstruction is at the top of this page.
|
|
|
|
|
|
|
|
