Metaphorical Form Design
CS137 Assignment #6
|
Out |
Tues, 10/12 |
|
Due |
Tues, 10/19 |
Gain an understanding of categories and breadth of graphic form.
Exploration of complex combinations of graphic qualities.
Explore connections between graphic qualities and implied content.
Connect changes in graphic character with changes in datasets over time, creating a visualization of data narrative.
Work with multiple icons in an info-composition, contrasting formal transformations of the assembled icons for ease of legibility and clarity of data relationships.
Benjamin Martinez and Jacqueline Block, Perception Design And Practice
Intro.; Chap. 2 Simplicity; Chap. 3 Shape; Chap. 4 Dynamism (pp. 1-46)
Figure and Ground and depth: pp. 47-64
Paul Klee, The Thinking Eye: Notebooks pp. 1-67, 105-119, and 123-131.
Colin Ware, Information Visualization: Perception for Design
--Experimental Semiotics Based on Perception pp. 10-22
--Types of Data pp. 28-31
Part One: Interaction of Graphic Transformation

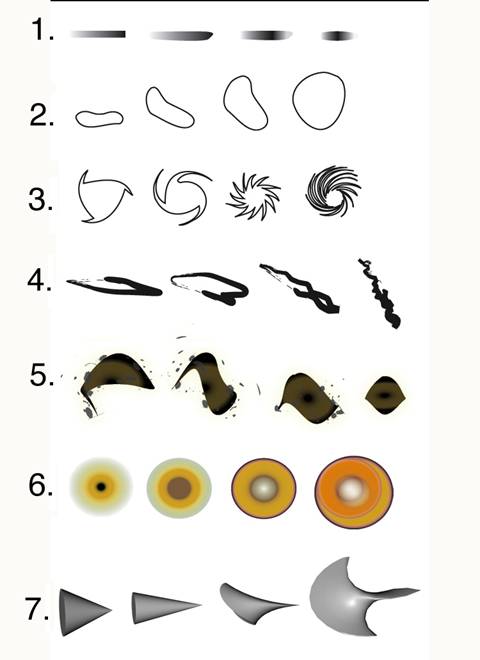

Each of the following groups of shapes represents a sequence. Assign a meaning to each step of the sequence—that is: determine a meaning for each shape and describe how that meaning changes from one state to another in the sequence. Your transformations should involve physical principles: weight, density, speed, size, direction, or states of being: liquidity, amorphism, crystallization, volatility, compression etc. Be as specific and imaginative as possible (multiple values may be expressed by and icon of a transformation), but be prepared to explain your thinking clearly. Ideally, your interpretation should be easily understood and ultimately adopted by another viewer. The goal is to construct a narrative of symbolic physical change which “reads” smoothly based on the changing visual character of the icons
Hand in, by e-mail, a written characterization of your interpretation of the transformations suggested by each group of four icons in the handout. Your interpretation should be as imaginative as possible, but based on honest reaction, and defensible in relation to the visual character of the icon group. The qualities that are under transformation need not be related to arterial flow, but should be physical qualities of form, movement, growth, temperature, etc.
Part Two: Info-compositions
Design an “info-composition” involving four states of transformation within a narrative of bat flight. Each composition should include icons/geons* for the following values: (*geons are 3D icons)
1. air flow speed
2. air flow direction
3. pressure
4. vorticity
5. pressure on the wings
You may combine multiple values in one icon, using different visual variables to suggest different data values, as in assignment #5. In this case, however, we are seeking to strengthen the intuitive clarity of the connection between visual variable and data value. There should be a level on which a viewer can make an immediate connection between the visual transformation of your icons, and the changes in the fluid forces they represent. In other words, if a “typical” viewer were to interpret you design, as in the first part of this assignment, we would hope that they would come up with something close to the specific values you are seeking to represent with each icon you design. Obviously it is necessary for you to have a basic understanding of the character of the five data values listed above in order to represent them effectively. If you are confused about any of them, ask via e-mail. However, the mode of representation here is metaphorical, not literal. The goal is to make a design evoke or feel like a given data value, not necessarily show what it actually looks like. A smoothed out horizontal form may suggest speed, for example, but it is not literally moving, and you would have to decide how greater or lesser velocity would change the visual form of the icon.
Your composition may be more or less graphical or three-D, but it should show the narrative occurring in situ, with basic reference to the space of the bat wings and its surroundings. The bat wings should be shown as an integrated surface, composed of icons (connected or disconnected to each other) that elucidate the forces playing upon the surface. The air flow may be visualized as streamlines, or as series of icons representing various values. If streamlines are used, they should be in iconic form, with variables that can be clearly understood by the viewer.
Any 2D (icon) or 3D (geon) form can be used, (as can color and texture).
You may find inspiration for you icon designs from some of the natural forms we looked at in the first day of class. These are available on the calendar page.
Give an example of a literal connection between a graphic transformation and a data variable. Give an example of a metaphorical connection. Give an example of a coded or arbitrary connection. Are there pros and cons to these three approaches?
Are there qualities of graphic form that might be better suited to the VR environment of the Cave? Is there an advantage to 2D visualization or 3D?
Are there categories of formal transformation that are complimentary: that is, which can exist side by side with discrete legibility?
Are there principles of design that can be referred to in assuring an intuitive or natural legibility of graphic metaphor?
o Created written characterization of the icon groups shown in Part 1.
o Created 1 info-composition as described in part 2.
o Answered assignment questions and emailed TA
o Consider how these principles might function in 3D.
