CS129 / Project 6 / Automated Panorama Stitching

Algorithm

Here is the algorithm for stitching to images together:
First we want to pick out features from each image using Harris's algorithm. We then implement adaptive non-maximal suppression, looping through all initial interest points and comparing them to the other interest points. We pick the top N interest points (helps with very large images). Once we have features from each image, we need to draw a correspondence between each feature from image 1 to the analogous feature in image 2. We do this using Rowe's ratio test. Once we have established a correspondence between features, we use RANSAC. First we select four pairs of xs and ys and recover the homography between them using linear algebra. We then apply the homography to all of the other pairs of matched features and keep track of the homography that gives the least error. We then apply that homography to image 1 and combine the two images together to stitch together the panorama.


Results

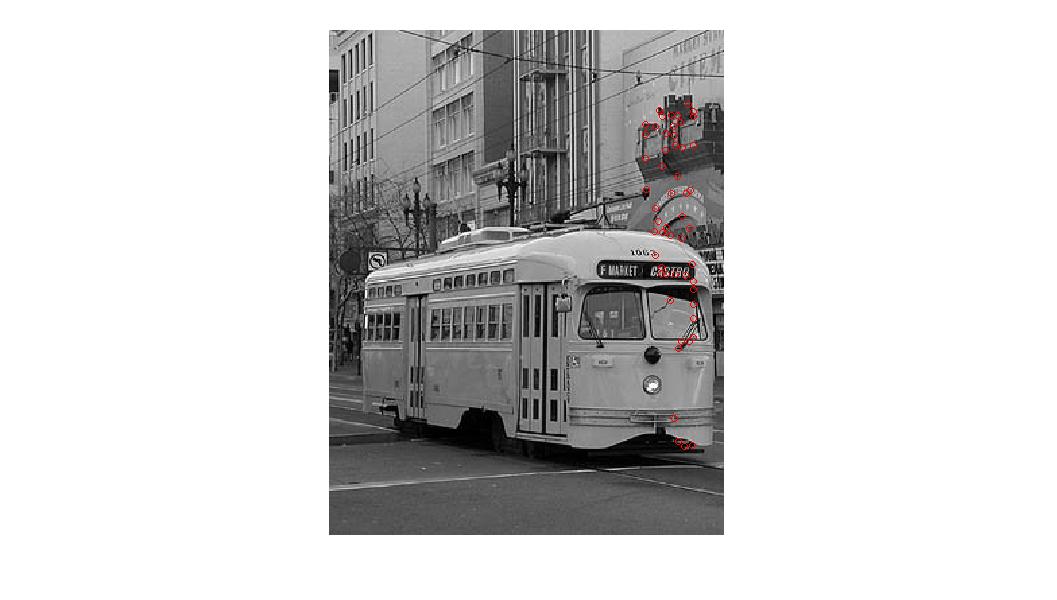

Left image with highlighted features

Right image with highlighted features

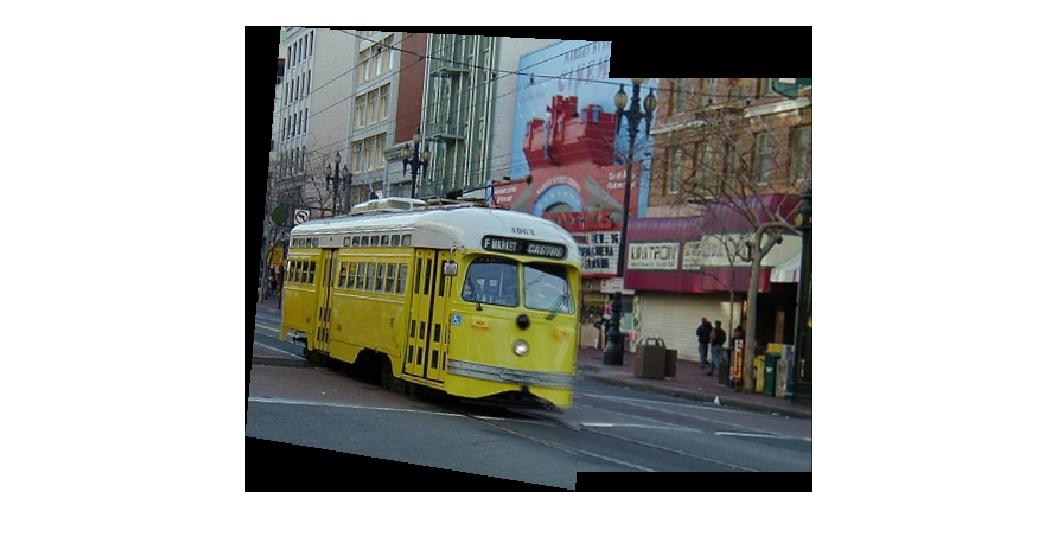

Bus panorama

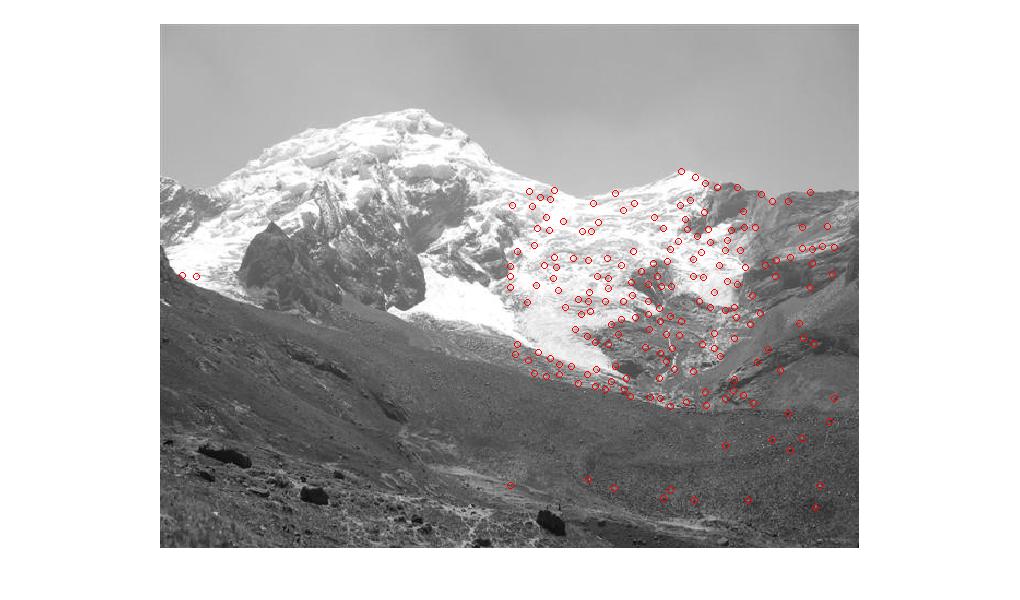

Left image with highlighted features

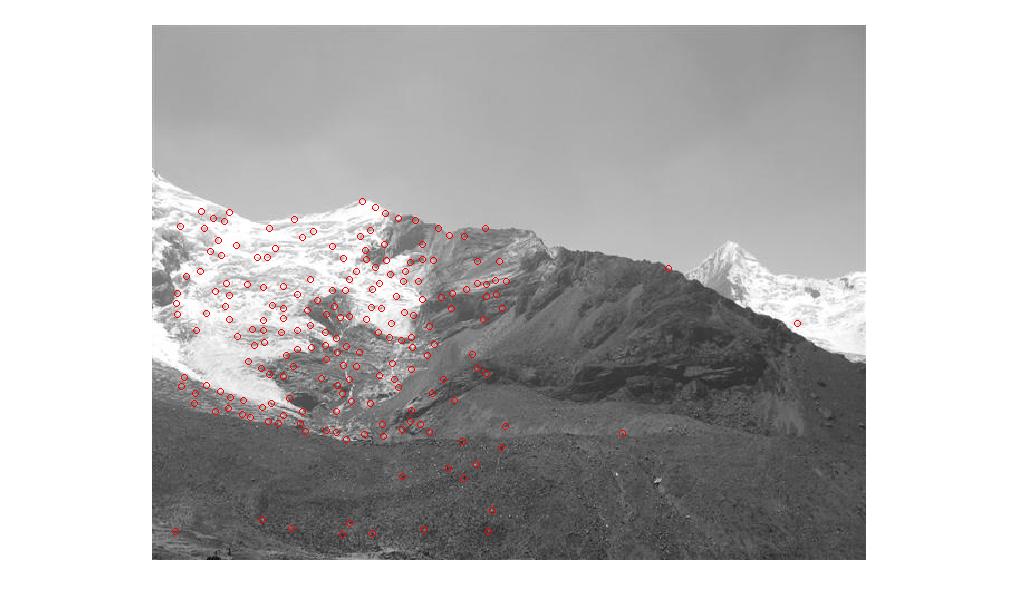

Right image with highlighted features

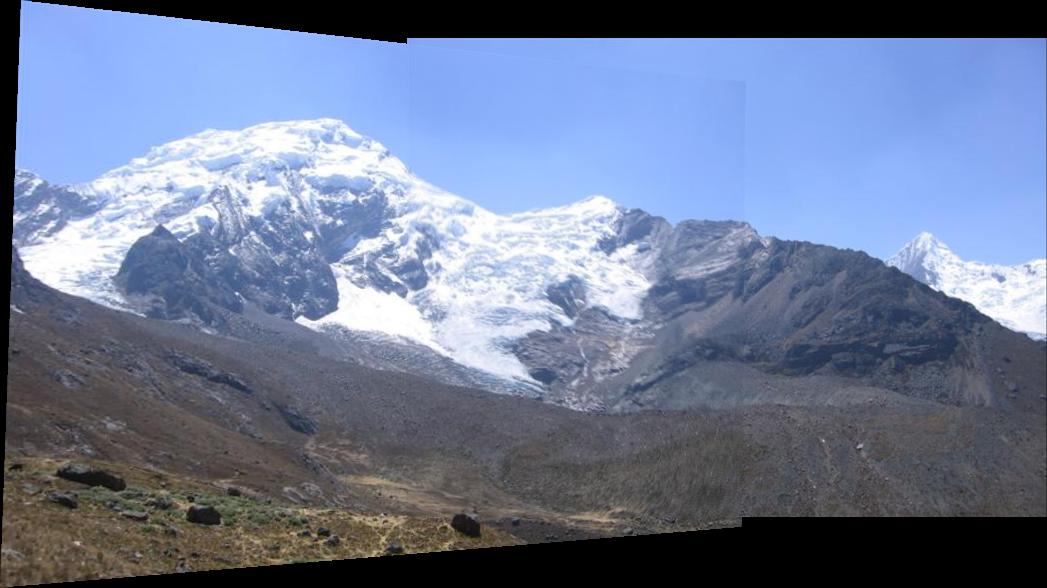

Mountain panorama

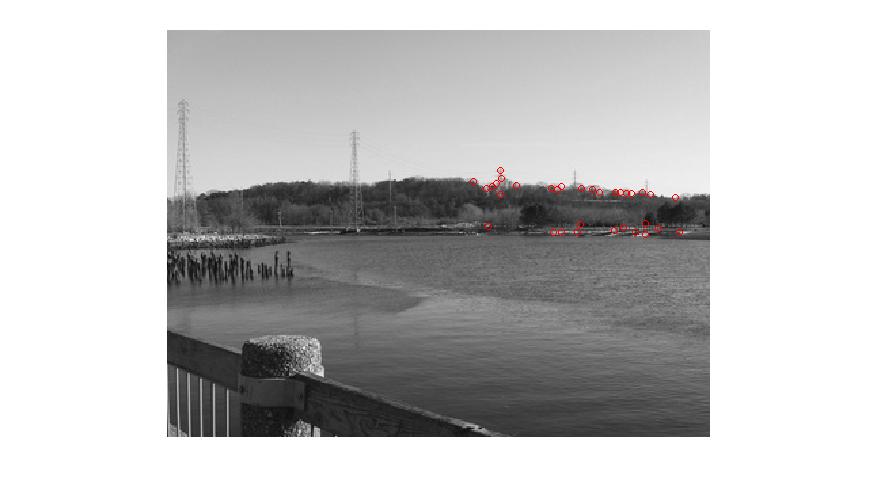

Left image with highlighted features

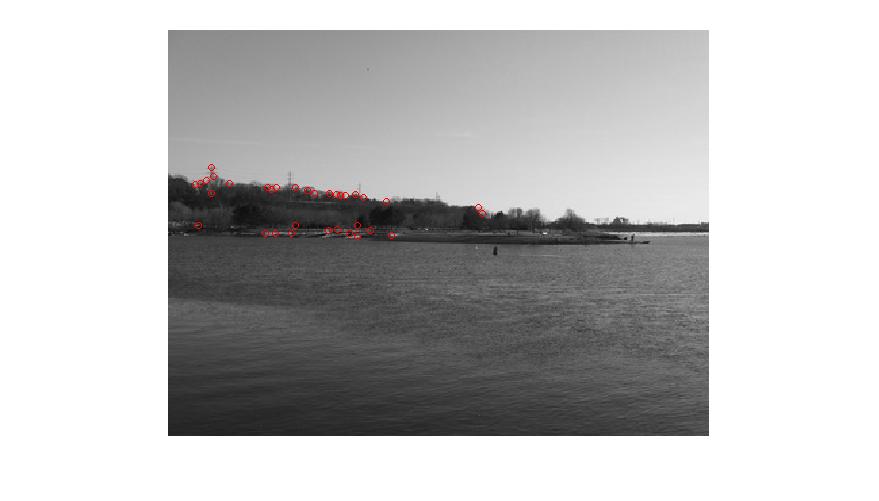

Right image with highlighted features

Lake panorama

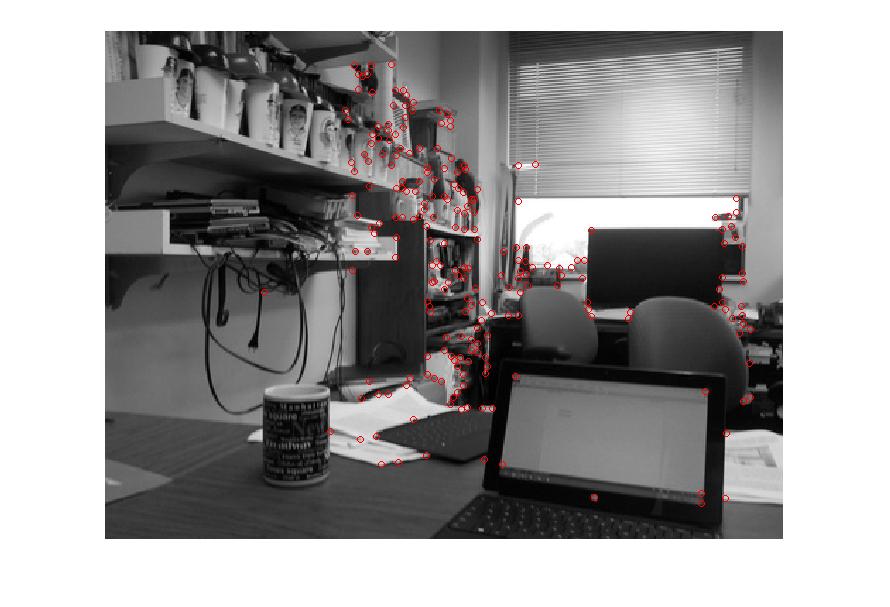

Left image with highlighted features

Left image stiched with center image; new features highlighted

Right image with highlighted features

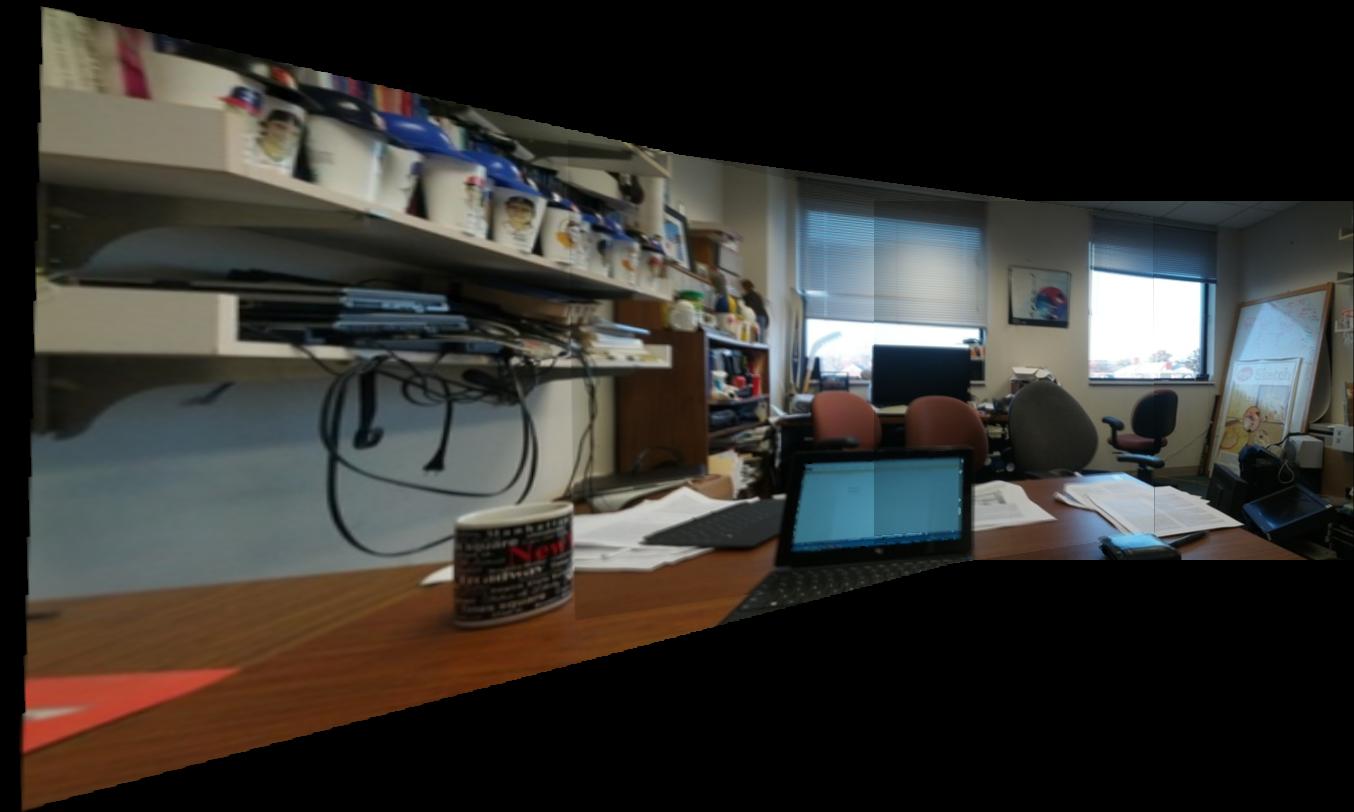

Desk panorama

Desk panorama

Mountain panorama

Lake panorama, note that because it covers such a large range, the perspective on the left becomes quite skewed

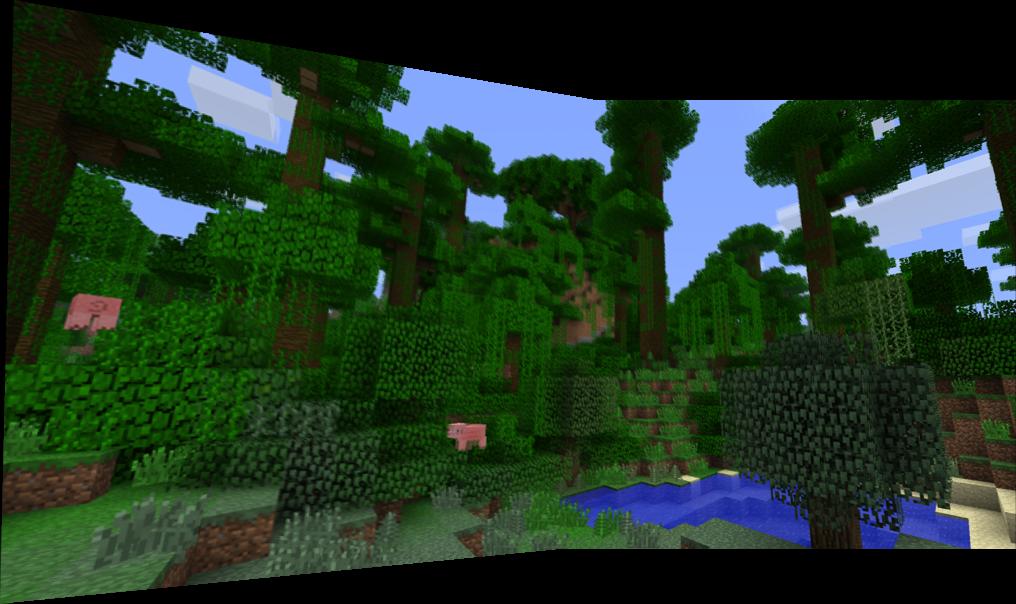

As above, this is a panorama made from screenshots in minecraft

Panorama of my messy room!!
