CS129 / Project 5 / HDR

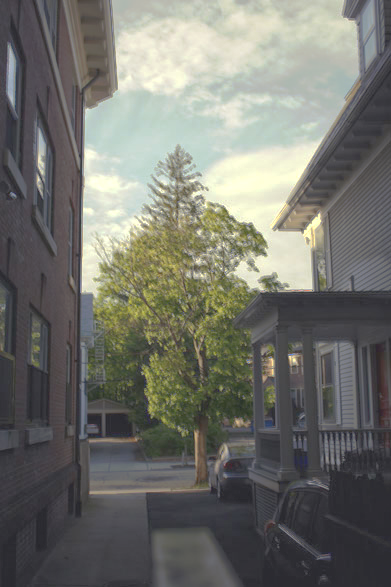

local tone mapping result.

Recover Radiance Map

My Algorithm for radiance map reconstruction is almost same as the one described in Debevec and Malik 1997 paper. The size of my A is same as the one described in lecture slide but 2pix shorter than the paper one. Atfer having solved g, I apply g on images of different exposures and take the weighted sum of those g(x) - ln(t). Before output, I use exp(hdr) to output linear scale radiance map

Tone Mapping

My global tone mapping operation is simply the log image of the linear radiance map. For local tone mapping, I calculated the Intencity manualy by multiply R/G/B channel by 0.2989/0.5870/0.1140. I implemented the bilateral filter in brute foce way but it usually take less than 1min (with space sigma =16). I am using range sigma =0.5 because the pixel radiance is in log scale.

linear and log scale radiance map

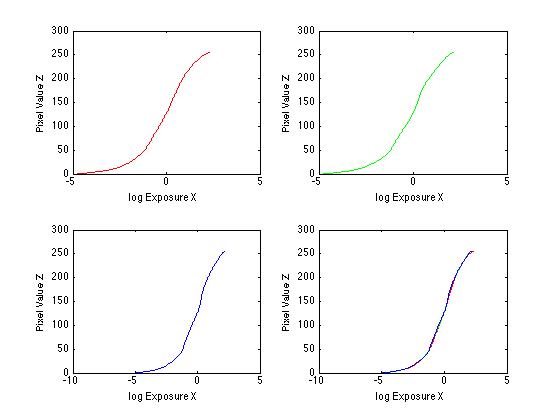

relationship bwteen exposure and pixel values in log scale

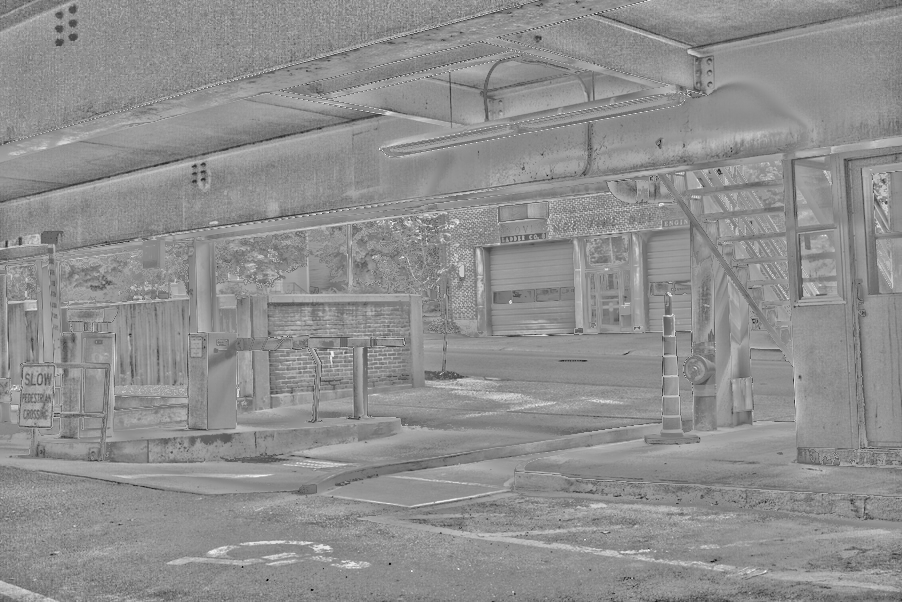

Detail and large scale structures(space sigma 8 and 16)

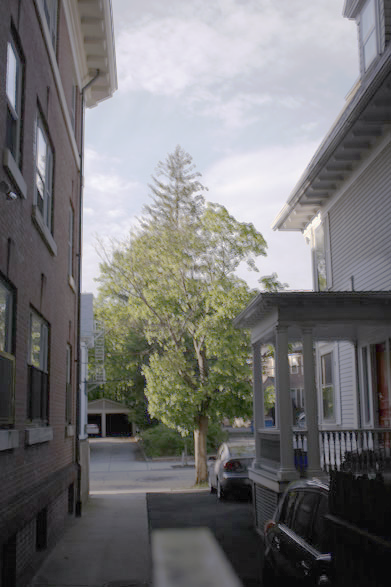

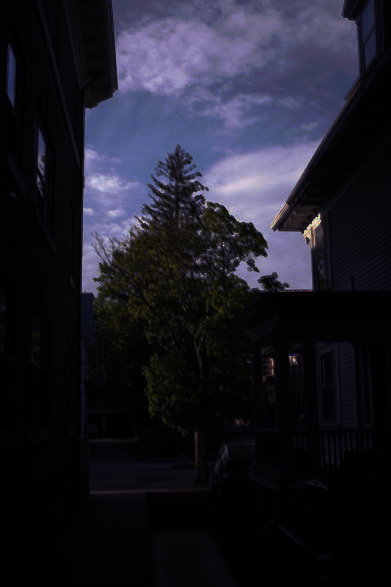

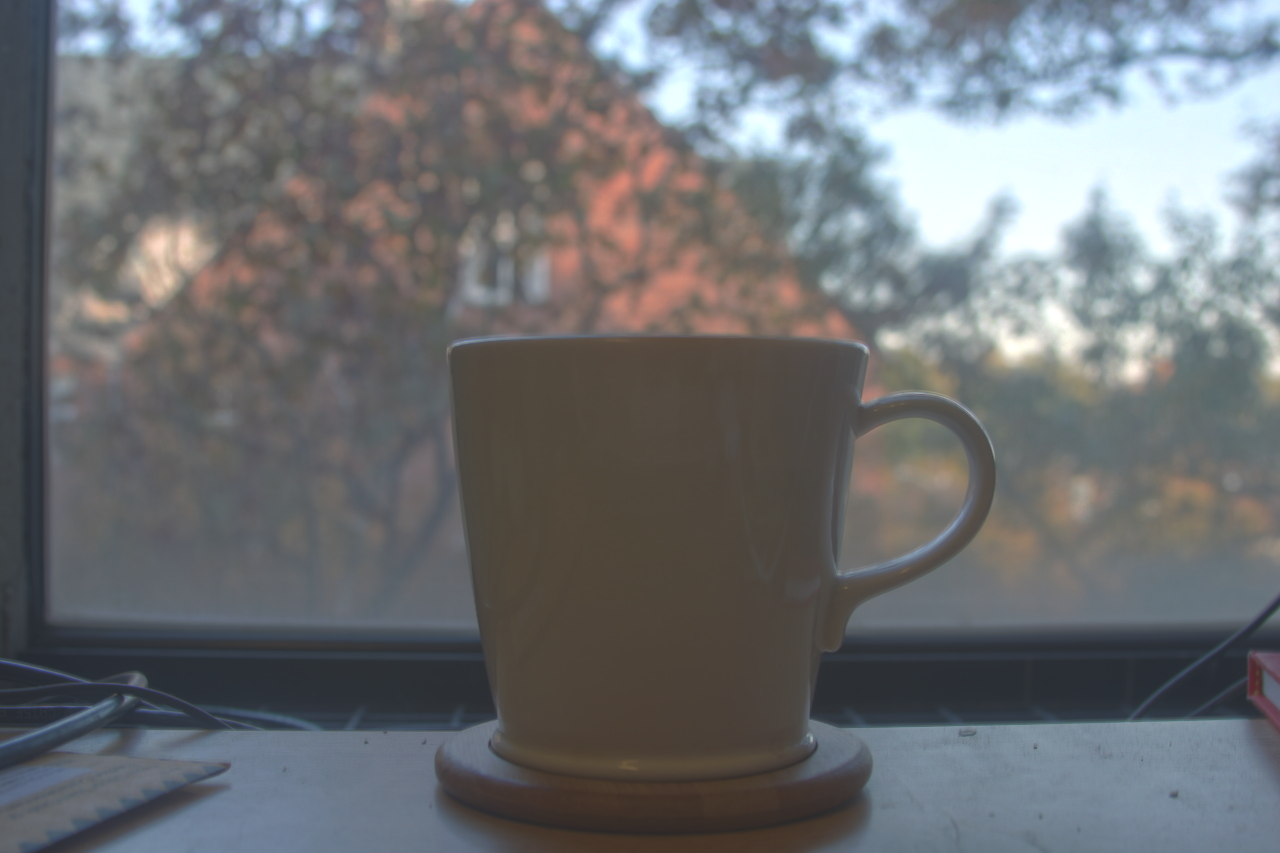

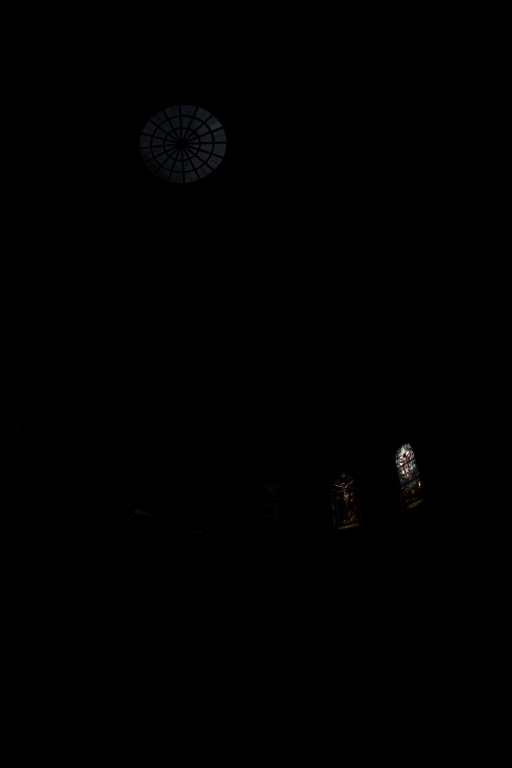

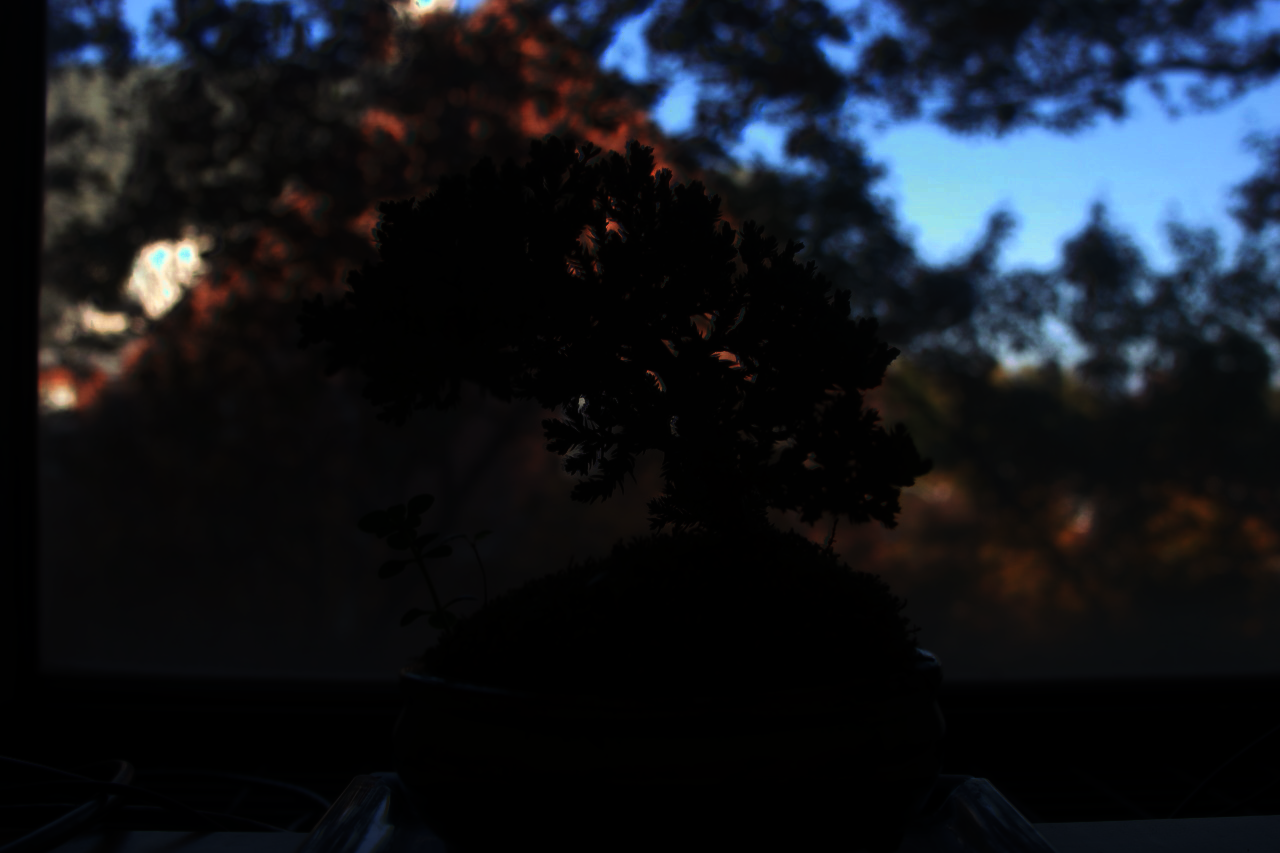

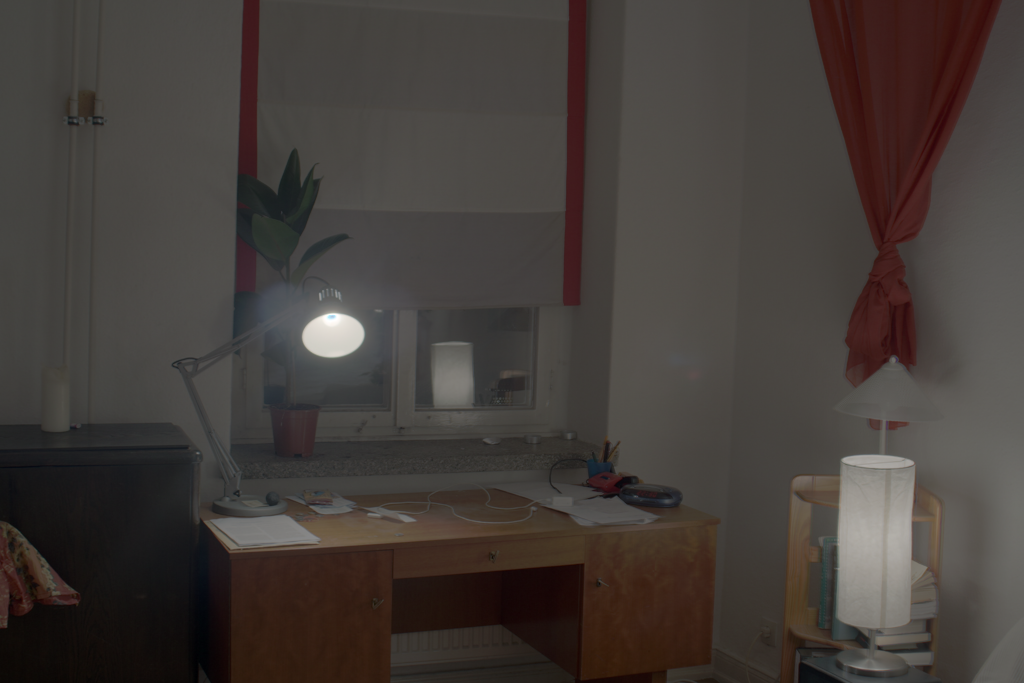

All test cases results(linear scale, global log, local tone mapping)
