As we mentioned earlier, the shell is your primary mode of communication with the computer. Almost anything you want to do will involve inputting commands into the shell.

Note that everything we say here about shells applies to your console as well. As mentioned before, the console is just another shell, but you should only have one console at any given time, as the console is responsible for displaying messages from the system.

Changing your Password

The first time you log in, you have to change your password. Think of a new password. Try to include numbers, punctuation, or capital and lower case letters. If your password is deemed too simple by Linux, you will have to pick another.

Type passwd in a shell and hit 'enter.'

You will get a prompt that looks like this (you may have to wait a few seconds):

Changing account information for <YourLoginNameHere> on godzilla.
Please enter old password:

Enter your old password (the one you just logged on with). NOTE: Your password will not be echoed in any way (no dots or asterisks). If you make a mistake, you can try to hit "ctrl-u," which will clear everything you have typed. (No, backspace won't work here. It works in other places. To learn how to deal with Linux's crazy deleting, see the Linux Hints in the Appendix.) Otherwise, let it fail and re-enter passwd to try again.

You will then be asked for your new password:

Please enter new password:

Enter the new password you thought up.

Please retype new password:

Re-enter the new password.

The system will now determine whether you have selected a good enough password. If you have, you will receive a message like:

The NIS password has been changed on godzilla.

If the change failed, you will receive some explanation, like:

Mismatch – password unchanged

If the change failed, re-enter passwd to try again.

Setting up your Account for CS9

Create a directory course/cs009-2 in your home directory. To do this, type:
mkdir course
in your home directory. then cd into it and make the directory cs009-2 using mkdir again.

Setting up SSH

If you ever want to remote login from the MS-Lab, you are going to need to set up an SSH key pair. (For instructions to set up SSH on your home machine, see the department's SSH page. It walks you through setting up OpenSSH, which you can get for Cygwin and Mac OS X. If you want Cygwin-specific ssh instructions, check out CS9's Cygwin Tutorial page. For now, just follow these steps and don't worry about the details.)

In a shell, type ssh-keygen -t dsa and press enter.

You should see the message:

Generating public/private dsa key pair.

There will be a pause, which may last a few seconds, followed by the prompt:

Enter file in which to save the key (/u/<yourlogin>/.ssh/id_dsa):

Press enter without typing anything.

You will then be prompted to enter a passphrase. This is like a password for when you use SSH to access a computer remotely. Think up a new passphrase. This passphrase MUST be different from your password to log in to the CS Department's Debian computers!

Type the passphrase you thought up and press enter. When prompted, confirm your passphrase.

Your SSH key is now created, but it is not in the right place. First make sure that you have a file "~/.ssh/authorized_keys". If you do not, create it by typing:

touch ~/.ssh/authorized_keys
in a shell and press enter.

Now, to put your SSH key in the right place,

Type cat ~/.ssh/id_dsa.pub >> ~/.ssh/authorized_keys
in a shell and press enter.

You can now use SSH to open Xsessions from department machines to other department machines (e.g. from the MS Lab to the Sun Lab). If you wish to remotely connect from your home machine, see the aforementioned references.

File System

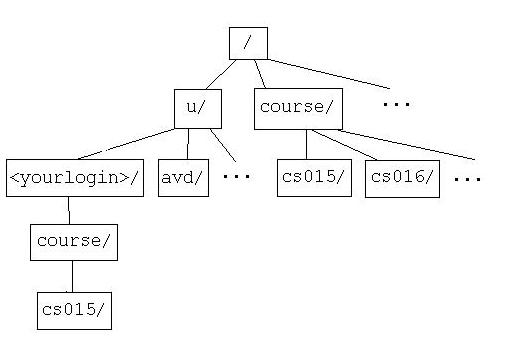

All of the computers on the CS department's network use a "shared file system" called NFS (Network File System). That means that no matter what computer you log into in the department, you will have access to all the same files. This might sound really scary, but it is functionally the same as on any other computer. Data is contained in files, and files are organized with directories. The files and directories are located in a "tree," like in Windows or Mac OS, with each directory containing subdirectories or files (or both, or nothing).

In Linux, directories are separated by '/,' and the root directory that contains all other directories is also called '/.' The chain of directories and slashes that describe a particular directory or file is called the directory or file's path. (For example, /u/avd/README is a file called "README" in the "avd" directory, which is in the "u" directory, which is in the "/" directory [whew].) A path that begins from the root directory ( / ) is called a fully-specified path because it leaves no ambiguity as to the file or directory's location.

Each user gets his/her own "home directory." All of the home directories are located in a directory called "u." So, your home directory is located in /u/<yourlogin>/. Since you use your home directory so much, it can be abbreviated to '~'. Meaning, you can write interchangeably: '/u/<yourlogin>/' or '~'.

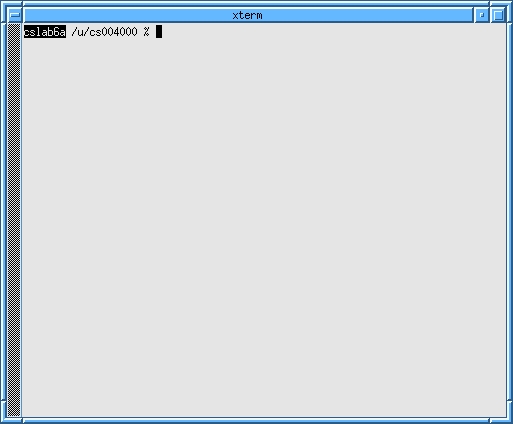

Your shell is pretty closely linked to the file system. Every shell has a current directory. You can think of this as your location within the file system. (You cannot be within a file.) A shell's current directory is displayed on the prompt. So, when you have a prompt that looks like:

cslab4g /u/<your login> %

It means that you are on computer "cslab4g" and you current directory is your home directory (The '%' is just to indicate where you type.). If the prompt looked like:

cslab4g /course/cs009-2/bin %

You would be in the bin directory of the cs009 course directory -- not to be confused with your cs009 directory in course in your home directory, which looks like:

cslab4g /u/dsuttle/course/cs009-2 %

Navigating the File System

There are a bunch of important commands for navigating the file system. We are going to show you some of the most common here, but take a look at the Appendix for a full listing.

Where am I?

As noted above, you can usually figure out what directory you're in simply by looking at the prompt in your shell. But what about the contents of the directory? The command ls (short for list) will show you the contents of the current directory.

Type ls in a shell and press 'enter.'

You should see something similar to this (probably not exactly the same files and directories):

This shows the home directory of the CS9 test account. It is a little cluttered since it has been around awhile. It contains the directories Mail, News, course, mail, My Documents, and nsmail; and the files README and flamingo. Notice that some names are followed by a '/.' This '/' marks a directory. Thus, in the picture above, course is a directory, but README is not.

How Do I Get Out of Here?

The command cd <dir> will move you to a different directory.

Type cd course in a shell and press 'enter.'

Your prompt should now indicate that your current directory is /u/<yourlogin>/course.

Type ls and press 'enter.'

You should see a cs009-2/ directory in the course directory. That is where you will be doing all of your work for CS9.

Type cd cs009-2 and press 'enter.'

Type ls and press 'enter.'

You are now in your course/cs009-2 directory, and your call to ls should have shown you that the directory is empty.

Parent Directories

The symbol '..' represents the directory above your current one. So, if you want to move up one directory, you would enter 'cd ..'.

Type cd ../.. and press 'enter.'

This brought you to the parent of your current directory's parent, or back to your home directory. (As a shortcut, cd with no directory specified will also bring you back to your home directory.)

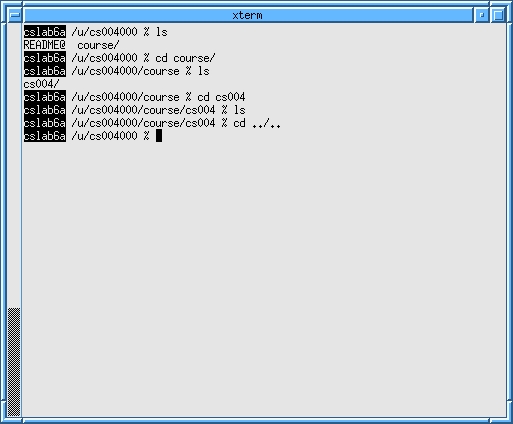

Right now, your shell should look something like this (except that you are in your cs009-2 directory):

If your shell looks different, or if you are in a directory other than your home directory, figure out your mistake and then type cd and press enter to return your home directory.

Organizing it All

If you couldn't change the file system, it would be pretty useless. The command mkdir <dirname> allows you to create new directories.

In your home directory (in a shell that only has /u/<yourlogin>  for the current dir), type mkdir tempdir and press 'enter.'

If you ls your home directory now, you should see the new folder tempdir that you just created.

Copying Files

Also important for managing the file system is the copy command, which is in the form:

cp <sourcefile> <destinationfile>

Still in your home directory, type:


cp README tempdir/READMEcopy
    and press 'enter.'

Type cd tempdir and then ls to see that you have indeed copied your README into your new directory.

Deleting Files and Directories

The rm <file> command will delete files.

From your ~/tempdir directory, type rm READMEcopy and press 'enter.' You will be asked to confirm the removal. Type 'y' and press 'enter' again to continue.

Enter ls to ensure that the file has been removed.

To remove directories, use rmdir <dir>.

Return to your home directory.

Type rmdir tempdir and press 'enter.'

If you try to remove a directory that is not empty with rmdir, you will get an error message. You must use rm to remove all files within a directory before you can delete the directory with rmdir. Since you emptied tempdir prior to calling rmdir on it, typing ls should show you that it is gone. See the Appendix for ways to remove directories without having to empty them first.

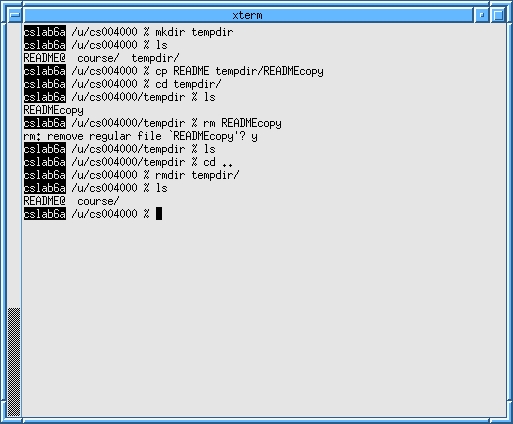

At this point, your shell should look something like this:

More Commands

There are a ton more commands that will come in handy as you proceed in CS. See the Appendix for a more complete listing.
