CS 143 - Project 4: Face detection with sliding window

Arman Uguray (auguray)

In this project, we implemented a face detector that uses the sliding window paradigm. It independently classifies all image-patches as being object or non-object and uses this data to detect objects on test data. Here is the general outline of the algorithm:

The algorithm is basically trained on a set of positive and negative samples and and uses this data to determine whether patches are true or false during test time.

  1. Load crops of positive samples and extract positive features using HoG
  2. Mine hard negatives by finding false positives
  3. Train the classifier on the above data using a linear and a non-linear SVM
  4. Evaluate on test set

Results

I ran the algorithm under these varying parameters, keeping all other variables at their default values.:

I started from an initial window size of 3x3. There seemed to be a dramatic increase when I changed this size to 6x6. The linear SVMs I trained tended to have a precision-recall curve with fast-exponential-upto-linear falloff. Running the algorithm using on Non-linear SVM yielded two very different results on two different window sizes: with a window size of 6x6, the prevision-recall curve ended up having a very fast falloff with a very low recall and a low average precision, but a window size of 3x3 on the same classifier with the same parameters yielded a result very similar to the linear classifier with 6x6 windows.

Linear SVM:

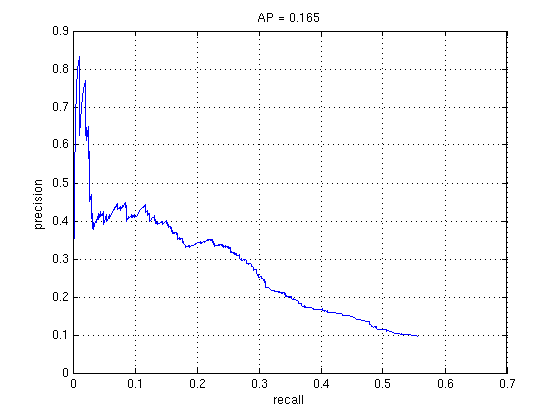

  1. figure1
    HoG window size: 3x3
    No# Histogram Bins 9
    Accuracy: 0.935
    TPR: 0.461
    FPR: 0.025
    TNR: 0.475
    FNR: 0.04
    Average Precision: 0.165

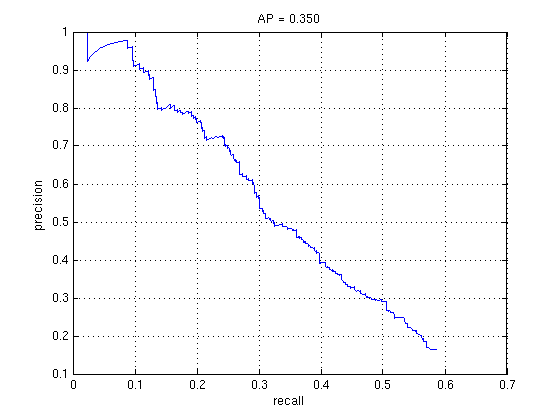

  2. figure1
    HoG window size: 6x6
    No# Histogram Bins 9
    Accuracy: 0.985
    TPR: 0.488
    FPR: 0.004
    TNR: 0.496
    FNR: 0.011
    Average Precision: 0.350

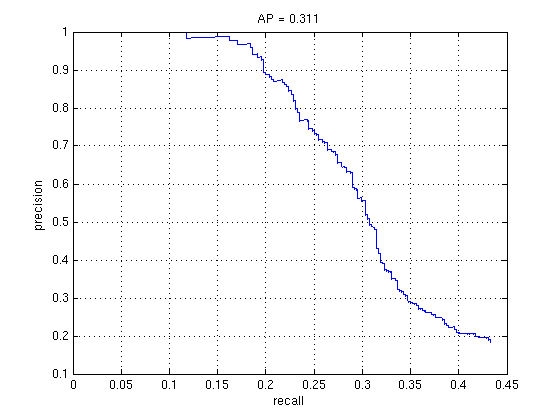

  3. figure1
    HoG window size: 12x12
    No# Histogram Bins 9
    Accuracy: 0.998
    TPR: 0.498
    FPR: 0
    TNR: 0.500
    FNR: 0.002
    Average Precision: 0.311

Non-linear SVM:

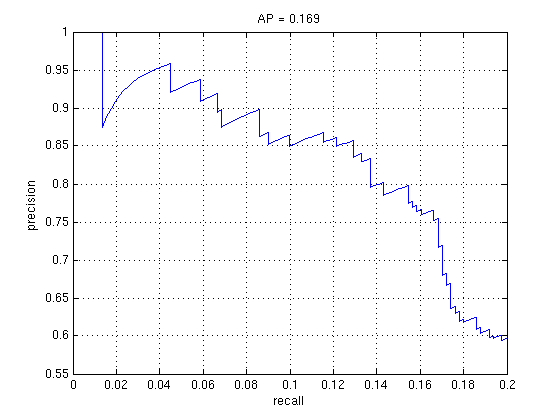

  1. figure1
    HoG window size: 6x6
    No# Histogram Bins 9
    Accuracy: 1
    TPR: 0.5
    FPR: 0
    TNR: 0.5
    FNR: 0
    Average Precision: 0.169

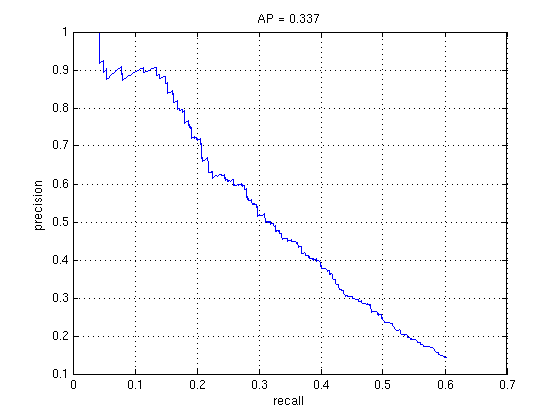

  2. figure1
    HoG window size: 3x3
    No# Histogram Bins 9
    Accuracy: 0.99
    TPR: 0.495
    FPR: 0.5
    TNR: 0.495
    FNR: 0.5
    Average Precision: 0.337

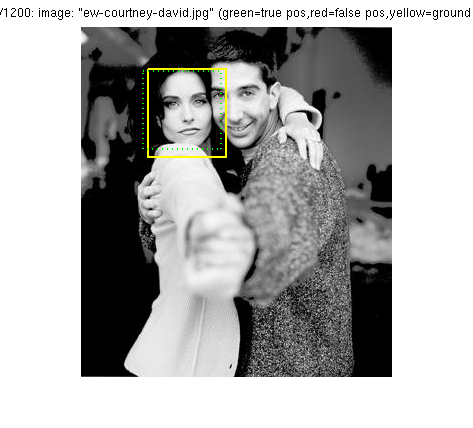

Some Examples:

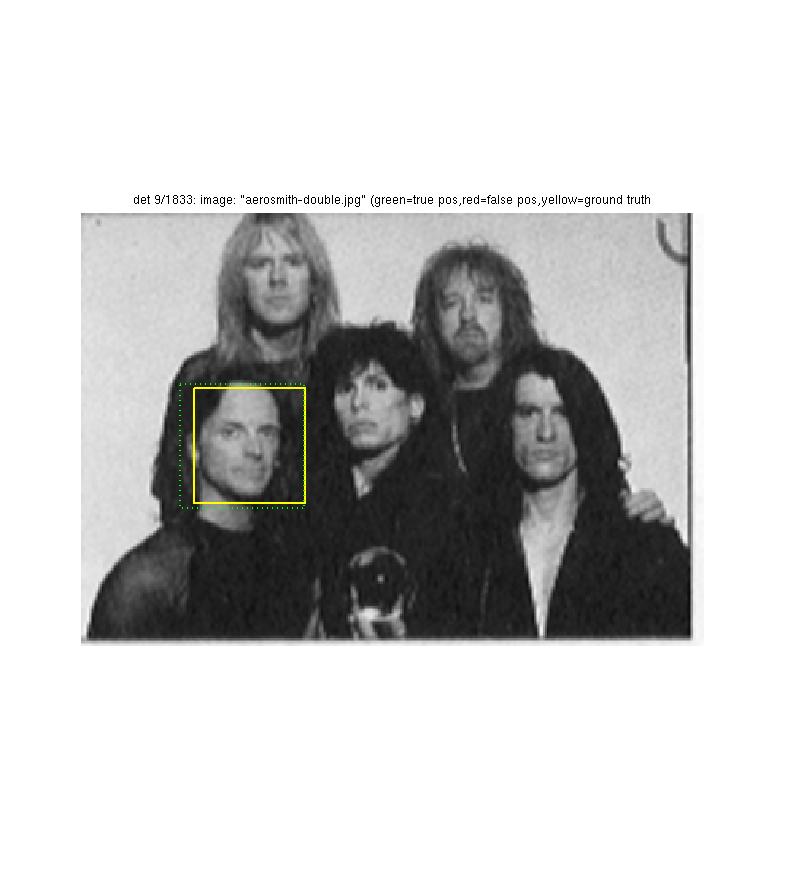

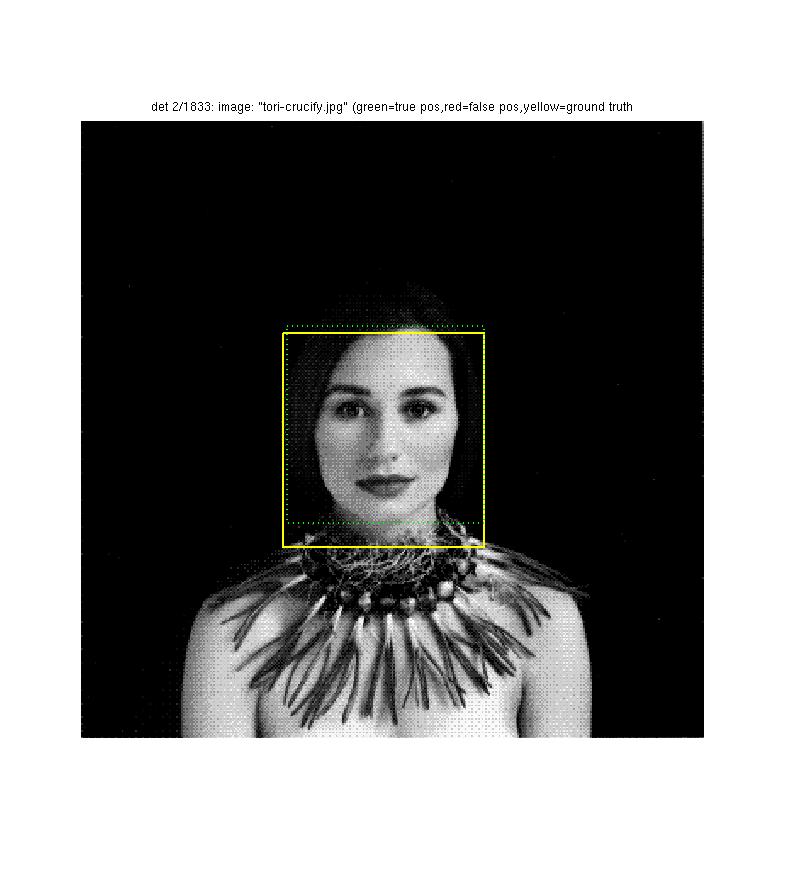

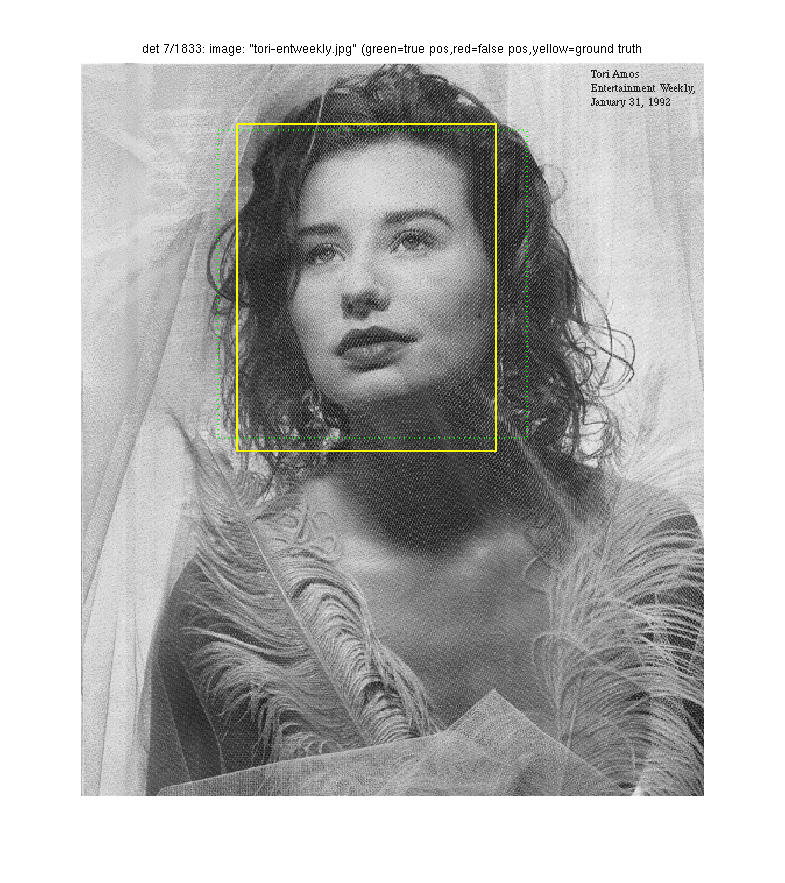

sample1 sample2 sample3

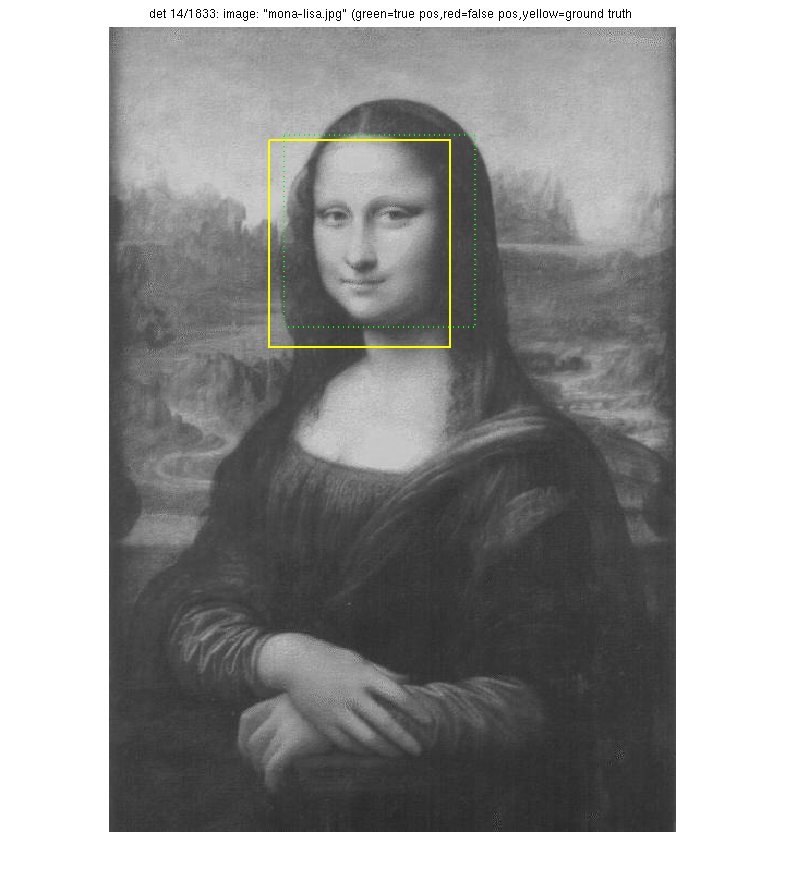

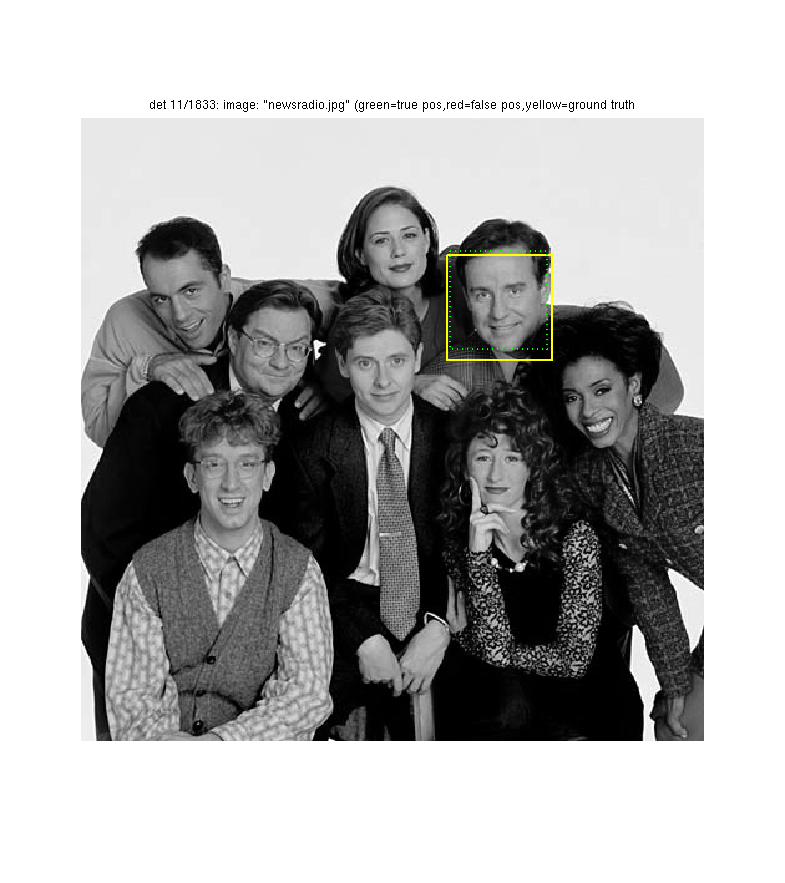

sample4 sample5 sample6

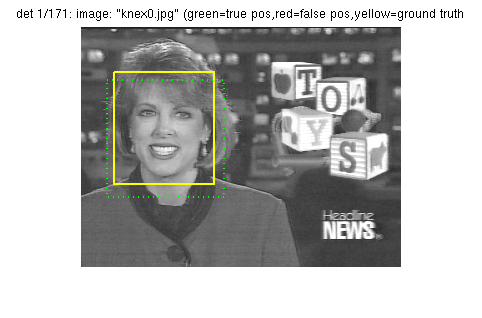

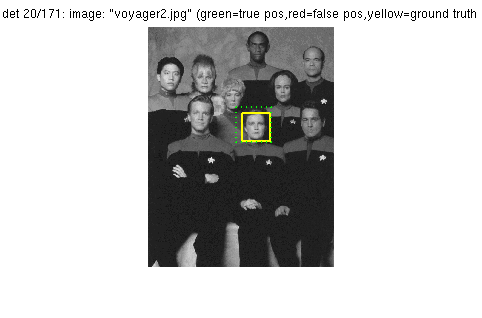

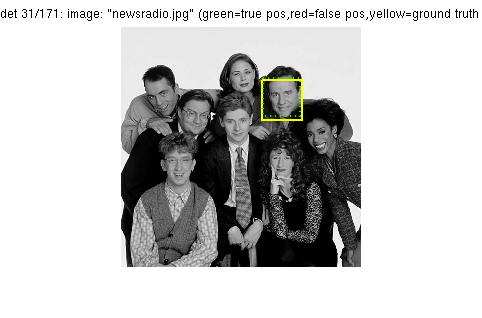

sample8 nlsample2 nlsample3

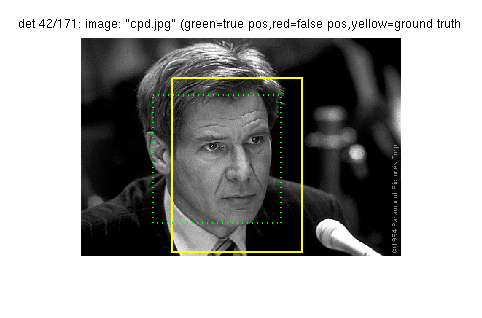

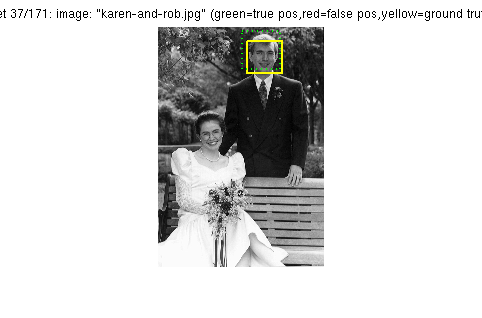

nlsample4 nlsample5 nlsample6
